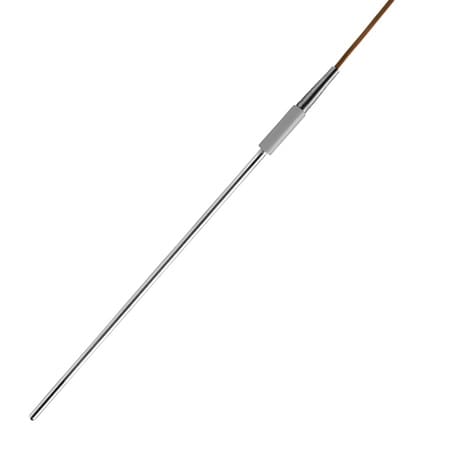

    High Temperature Thermocouple Probes with Lead Wire

    Configurable thermocouple probes with a high temperature low-profile molded plastic transition junction. Available in various calibrations, diameters, and lengths.
    $72.60
    Enquire
    Email Print this Page

    Data Sheet (PDF)

    High Temperature Thermocouple Probes with Lead Wire
    Dimensions

    Note: Probes with 1.02 mm (0.040") diameter and larger supplied with molded transition joints.
    Smaller-size probes supplied with stainless steel transition joints.
    All type-N probes supplied with stainless steel transition joints.


    Thermocouple
    Alloy         		Sheath Dia.
    mm (in.)         		Model No.
    150mm (6") Length         		Model No.
    300 mm (12") Length
    J
    IRON-CONSTANTAN
    304 SS Sheath     		0.25 (0.010")
    0.50 (0.020")
    0.75 (0.032")
    1.0 (0.040")
    1.5 (0.062")
    3.0 (0.125")     		HJMTSS-010(*)-6
    HJMTSS-020(*)-6
    HJMTSS-032(*)-6
    HJMTSS-040(*)-6
    HJMTSS-062(*)-6
    HJMTSS-125(*)-6     		HJMTSS-010(*)-12
    HJMTSS-020(*)-12
    HJMTSS-032(*)-12
    HJMTSS-040(*)-12
    HJMTSS-062(*)-12
    HJMTSS-125(*)-12
    K
    CHROMEGA™-ALOMEGA™
    304 SS Sheath     		0.25 (0.010")
    0.50 (0.020")
    0.75 (0.032")
    1.0 (0.040")
    1.5 (0.062")
    3.0 (0.125")     		HKMTSS-010(*)-6
    HKMTSS-020(*)-6
    HKMTSS-032(*)-6
    HKMTSS-040(*)-6
    HKMTSS-062(*)-6
    HKMTSS-125(*)-6     		HKMTSS-010(*)-12
    HKMTSS-020(*)-12
    HKMTSS-032(*)-12
    HKMTSS-040(*)-12
    HKMTSS-062(*)-12
    HKMTSS-125(*)-12
    E
    CHROMEGA™-Constanan
    304 SS Sheath     		0.25 (0.010")
    0.50 (0.020")
    0.75 (0.032")
    1.0 (0.040")
    1.5 (0.062")
    3.0 (0.125")     		HEMTSS-010(*)-6
    HEMTSS-020(*)-6
    HEMTSS-032(*)-6
    HEMTSS-040(*)-6
    HEMTSS-062(*)-6
    HEMTSS-125(*)-6     		HEMTSS-010(*)-12
    HEMTSS-020(*)-12
    HEMTSS-032(*)-12
    HEMTSS-040(*)-12
    HEMTSS-062(*)-12
    HEMTSS-125(*)-12
    T
    Copper-Constanan
    304 SS Sheath     		0.50 (0.020")
    0.75 (0.032")
    1.0 (0.040")
    1.5 (0.062")
    3.0 (0.125")     		HTMTSS-020(*)-6
    HTMTSS-032(*)-6
    HTMTSS-040(*)-6
    HTMTSS-062(*)-6
    HTMTSS-125(*)-6     		HTMTSS-020(*)-12
    HTMTSS-032(*)-12
    HTMTSS-040(*)-12
    HTMTSS-062(*)-12
    HTMTSS-125(*)-12
    *Specify junction type: E (exposed), G (grounded) or U (ungrounded).

    Read this article if you need help in selecting the thermocouple junction


    View the Thermocouple Accuracy and Color Code charts
