Variable Speed Control For Small DC And Universal Motors
Regular price
$727.53
Excl GST: $661.39
Excl GST: $661.39
Taxes included.
Shipping calculated at checkout.
SKU :
SKU:OMDC-15DVE-series

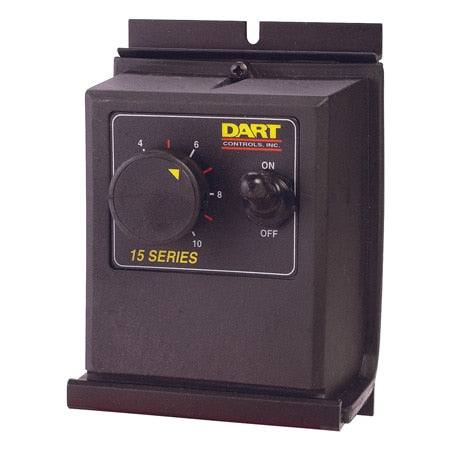

The OMDC-15DVE is a variable speed controller for small DC and universal motor applications. DC output current rating of 2 Amps, adjustable trimpot settings.
Couldn't load pickup availability
- Description
- Download Brochures
The OMDC-15DVE is a general purpose, economical variable speed controller for small DC and universal motor applications featuring: dual input voltage of 120/240 Vac with a DC output current rating of 2 Amps, adjustable trimpot settings, and quick connect terminal pins. The OMDC-15DVE features a NEMA 4/12 (IP66) enclosure.
SPECIFICATIONS
Temperature: -10 to 45°C (14 to 113°F)
AC Input Voltage: ±10% rated line voltage
Input Frequency: 50/60 Hz
Dimensions: 97 W x 140 H x 89 mm D (3.8 x 5.5 x 3.5')
Weight: 284 g (10 oz)
SPECIFICATIONS
Temperature: -10 to 45°C (14 to 113°F)
AC Input Voltage: ±10% rated line voltage
Input Frequency: 50/60 Hz
Dimensions: 97 W x 140 H x 89 mm D (3.8 x 5.5 x 3.5')
Weight: 284 g (10 oz)
×
