Vacuum & Pressure Feedthroughs with Multipin Connectors

$19,022.30
Excl GST: $17,293.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

PFTCC

Calibration needed?

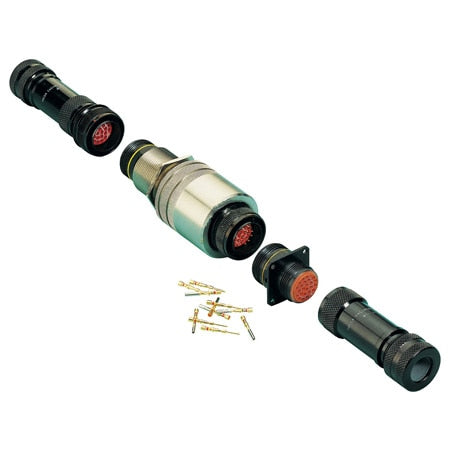

Connector feedthrough assemblies for sealing connections across pressure and vacuum applications. Thermocouple alloy & copper pin/socket options available.
View full details
  • Description

Description


SPECIFICATIONS
Material: Housing and Nut, 300 Series stainless steel connector shell, electroless nickel plated O-ring, Butyl Pins fit 20-24 AWG wire
Pressure Rating: Maximum pressure: 120 psi
Vacuum limit: 1 x 10 -8 Torr
Leak Rates, Pressure: Leak rate at 120 psi: 1 x 10 -6 cc air/sec Leak rate at 29 inHg vac: 1 x 10 -7 cc air/sec
Leak Rates, Vacuum: Leak rate at 15 psi: 10 x 10 -8 cc He/sec Leak rate at 10 -8 Torr: 1 x 10 -8 cc He/sec
Temperature Limits:-40 to 107°C (-40 to 225°F)
Out Gasing: <0.003% VCM <0.4% Weight loss Sample at 125°C (257°F), cold surface at 25°C (77°F)
