Thermocouple to Analog Converter, Battery or AC Power
Regular price
$355.33
Excl GST: $323.03
Excl GST: $323.03
Taxes included.
Shipping calculated at checkout.
SKU :
SKU:TAC80B

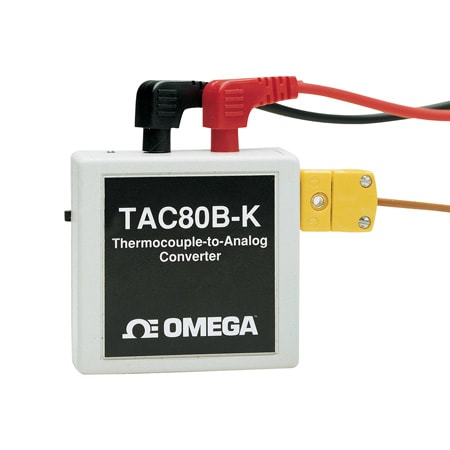

Thermocouple to Analog Converter, Battery or AC Power
Couldn't load pickup availability
- Description
- Download Brochures
TAC80B Series are discontinued. As an upgrade substitute, please check out the new TXUN temperature transmitter FM Approved Model for details.
The TAC80B temperature linearizer accepts the input signal from a thermocouple and outputs a linear 1 mV/degree analog signal for use with recorders and other instruments. TAC80B models operate using a 9V battery (included) and may be ac powered using the optional TAC80B-AC adaptor.
Model No.Input TypeRangeAccuracyTAC80B-JJ Iron-Constantan-4 to 1112°F
-20 to 600°C±5.4°F
±3.0°CTAC80B-KK CHROMEGA™-ALOMEGA™-4 to 1832°F
-20 to 1000°C±7.2°F
±4.0°CTAC80B-TT Copper-Constantan-4 to 572°F
-20 to 300°C±3.0°F
±1.6°C
The TAC80B temperature linearizer accepts the input signal from a thermocouple and outputs a linear 1 mV/degree analog signal for use with recorders and other instruments. TAC80B models operate using a 9V battery (included) and may be ac powered using the optional TAC80B-AC adaptor.
Model No.Input TypeRangeAccuracyTAC80B-JJ Iron-Constantan-4 to 1112°F
-20 to 600°C±5.4°F
±3.0°CTAC80B-KK CHROMEGA™-ALOMEGA™-4 to 1832°F
-20 to 1000°C±7.2°F
±4.0°CTAC80B-TT Copper-Constantan-4 to 572°F
-20 to 300°C±3.0°F
±1.6°C
×
