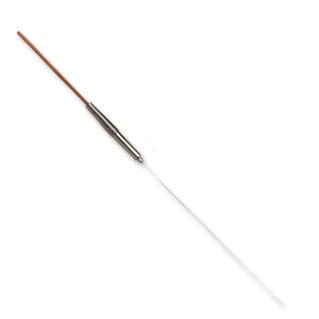

Thermocouple Probes with Lead Wire & Mini Molded Transition

$137.09
Excl GST: $124.63
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

KMTSS-JMTSS-chb

Calibration needed?
Configurable thermocouple probes with lead wire. Miniature transition joint from probe to cable is molded (260°C max). Probe diameters range from .010" to .125".
View full details
  • Description
  • Download Brochures
Calibration
ANSI Code 		Sheath Material Sheath Dia.
mm (in.) 		Upper Temp. Limits
T/C Junct.
°C (°F) 		Model Number
(See Notes Below)
K
CHROMEGA™-
ALOMEGA™ 		304 SS 0.25 (0.010)
0.50 (0.020)
0.80 (0.032)
1.0 (0.040) 		260 (500)
371 (700)
371 (700)
371 (700) 		KMTSS-010(*)-(**)
KMTSS-020(*)-(**)
KMTSS-032(*)-(**)
KMTSS-040(*)-(**)
Inconel®
600 		0.25 (0.010)
0.50 (0.020)
0.80 (0.032)
1.0 (0.040) 		260 (500)
371 (700)
371 (700)
371 (700) 		KMTIN-010(*)-(**)
KMTIN-020(*)-(**)
KMTIN-032(*)-(**)
KMTIN-040(*)-(**)
Super
OMEGACLAD™
XL 		0.25 (0.010)
0.50 (0.020)
0.80 (0.032)
1.0 (0.040) 		316 (600)
427 (800)
815 (1500)
815 (1500) 		KMTXL-010(*)-(**)
KMTXL-020(*)-(**)
KMTXL-032(*)-(**)
KMTXL-040(*)-(**)
J
Iron-
Constantan 		304 SS 0.25 (0.010)
0.50 (0.020)
0.80 (0.032)
1.0 (0.040) 		204 (400)
260 (500)
260 (500)
260 (500) 		JMTSS-010(*)-(**)
JMTSS-020(*)-(**)
JMTSS-032(*)-(**)
JMTSS-040(*)-(**)
T
Copper-
Constantan 		304 SS 0.50 (0.020)
0.80 (0.032)
1.0 (0.040) 		260 (500)
260 (500)
260 (500) 		TMTSS-020(*)-(**)
TMTSS-032(*)-(**)
TMTSS-040(*)-(**)
Notes: *Specify Junction: (G)rounded, (E)xposed or (U)ngrounded.
**Specify length in inches: 6 for 150 mm (6 in.), 12 for 300 mm (12 in.), or 18 for 450 mm (18 in.).
Super OMEGACLAD™ XL probes (highlighted in yellow) are also available in N calibration; substitute NMTXL for KMTXL in Model Number. 304 SS and Inconel® 600 probes are also available in Type E calibration. See ordering examples below.

View the Thermocouple Accuracy and Color Code charts
