Thermocouple Probes with Lead Wire & LCP Molded Transition

Thermocouple Probes with Lead Wire & LCP Molded Transition

$153.46
Excl GST: $139.51
Sale Sold out
Shipping calculated at checkout.

SKU :

KTSS-JTSS-chb

Calibration needed?

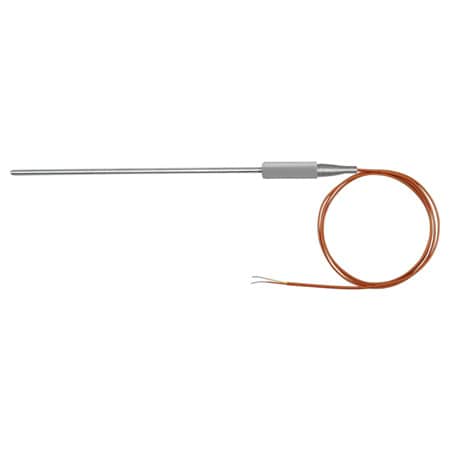

Configurable thermocouple probes with lead wire. Standard size transition joint from probe to cable is LCP molded (260°C max). Probe diameters range from .062" to .250".
View full details
  • Description
  • Download Brochures
For long life, drift-free operation, choose Super OMEGACLAD™ XL mineral insulated thermocouple cable and our rugged transition joint probes, which are available in Type K and N calibrations.
Calibration
ANSI Code 		Sheath
Materials 		Sheath Dia.
mm (in.) 		T/C Junction
Upper Temp.
°C (°F) 		Model Number
(See notes, below)
K
Cromega®-
ALOMEGA™
 		304SS 1.59 (1/16)
3.18 (1/8)
4.78 (3/16)
6.35 (1/4) 		899 (1650)
899 (1650)
899 (1650)
899 (1650) 		KTSS-116(*)-(**)
KTSS-18(*)-(**)
KTSS-316(*)-(**)
KTSS-14(*)-(**)
Inconel®
600 		1.59 (1/16)
3.18 (1/8)
4.78 (3/16)
6.35 (1/4) 		921 (1690)
1071 (1960)
1149 (2100)
1149 (2100) 		KTIN-116(*)-(**)
KTIN-18(*)-(**)
KTIN-316(*)-(**)
KTIN-14(*)-(**)
Super
OMEGACLAD™
XL 		1.59 (1/16)
3.18 (1/8)
4.78 (3/16)
6.35 (1/4) 		1038 (1900)
1149 (2100)
1204 (2200)
1204 (2200) 		KTXL-116(*)-(**)
KTXL-18(*)-(**)
KTXL-316(*)-(**)
KTXL-14(*)-(**)
J
Iron-
Constantan 		304SS 1.59 (1/16)
3.18 (1/8)
4.78 (3/16)
6.35 (1/4) 		441 (825)
521 (970)
621 (1150)
721 (1330) 		JTSS-116(*)-(**)
JTSS-18(*)-(**)
JTSS-316(*)-(**)
JTSS-14(*)-(**)
T
Copper-
Constantan
 		304SS 1.59 (1/16)
3.18 (1/8)
4.78 (3/16)
6.35 (1/4) 		260 (500)
316 (600)
371 (700)
371 (700) 		TTSS-116(*)-(**)
TTSS-18(*)-(**)
TTSS-316(*)-(**)
TTSS-14(*)-(**)
Notes: *Specify Junction: (G)rounded, (E)xposed or or (U)ngrounded.
**Specify length in inches: 6 for 150 mm (6 in.), 12 for 300 mm (12 in.), or 18 for 450 mm (18 in.).
Super OMEGACLAD™ XL probes (highlighted in yellow) are also available in N calibration; substitute NT for KT in Model Number. Some Type E devices are also available. See ordering examples below and contact Sales for moe info.
