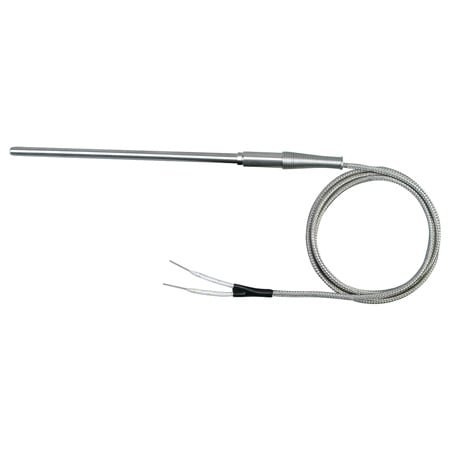

For long life, drift-free operation, choose Super OMEGACLAD™ XL mineral insulated thermocouple cable and our rugged transition joint probes, which are available in Type K and N calibrations. Inconel® overbraided silica ceramic and ceramic insulation provide cost-effective operation of the transition joint at temperatures up to 815°C (1500°F). See the highlighted section in the table.
Calibration ANSI Code |
Sheath Materials |
Sheath Dia. mm (in.) |
T/C Junction Upper Temp. °C (°F) |
Model Number (See notes, below) |
K CHROMEGA™- ALOMEGA™ | 304SS | 1.59 (1/16) 3.18 (1/8) 4.78 (3/16) 6.35 (1/4) | 899 (1650) 899 (1650) 899 (1650) 899 (1650) | TJ36-CASS-116(*)-(**)-CC-XSIB TJ36-CASS-18(*)-(**)-CC-XSIB TJ36-CASS-316(*)-(**)-CC-XSIB TJ36-CASS-14(*)-(**)-CC-XSIB |
Inconel® 600 | 1.59 (1/16) 3.18 (1/8) 4.78 (3/16) 6.35 (1/4) | 921 (1690) 1071 (1960) 1149 (2100) 1149 (2100) | TJ36-CAIN-116(*)-(**)-CC-XSIB TJ36-CAIN-18(*)-(**)-CC-XSIB TJ36-CAIN-316(*)-(**)-CC-XSIB TJ36-CAIN-14(*)-(**)-CC-XSIB | |
Super OMEGACLAD™ XL | 1.59 (1/16) 3.18 (1/8) 4.78 (3/16) 6.35 (1/4) | 1038 (1900) 1149 (2100) 1204 (2200) 1204 (2200) | TJ36-CAXL-116(*)-(**)-CC-XSIB TJ36-CAXL-18(*)-(**)-CC-XSIB TJ36-CAXL-316(*)-(**)-CC-XSIB TJ36-CAXL-14(*)-(**)-CC-XSIB | |
J Constantan | 304SS | 1.59 (1/16) 3.18 (1/8) 4.78 (3/16) 6.35 (1/4) | 441 (825) 521 (970) 621 (1150) 721 (1330) | TJ36-ICSS-116(*)-(**)-CC-XSIB TJ36-ICSS-18(*)-(**)-CC-XSIB TJ36-ICSS-316(*)-(**)-CC-XSIB TJ36-ICSS-14(*)-(**)-CC-XSIB |
**Specify length in inches: 6 for 150 mm (6 in.), 12 for 300 mm (12 in.), or 18 for 450 mm (18 in.).
Super OMEGACLAD™ XL probes (highlighted in yellow) are also available in N calibration; substitute NN for CA in Model Number. See ordering examples below.
View the Thermocouple Accuracy and Color Code charts
