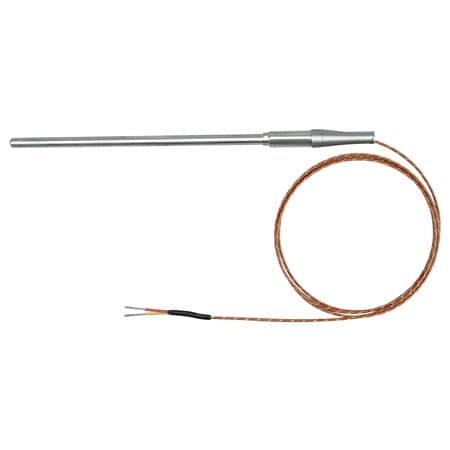

Thermocouple Probes with Fiberglass Lead Wire

For higher temperatures, choose Super OMEGACLAD™ XL mineral insulated thermocouple cable and our rugged transition joint probes, which are available in Type K and N calibrations. See the highlighted section in the table.

Calibration ANSI Code	Sheath Materials	Sheath Dia. mm (in.)	T/C Junction Upper Temp. °C (°F)	Model Number (See notes, below)
K CHROMEGA™- ALOMEGA™	304SS	1.59 (1/16) 3.18 (1/8) 4.78 (3/16) 6.35 (1/4)	899 (1650) 899 (1650) 899 (1650) 899 (1650)	TJ36-CASS-116(*)-(**)-CC TJ36-CASS-18(*)-(**)-CC TJ36-CASS-316(*)-(**)-CC TJ36-CASS-14(*)-(**)-CC
	Inconel® 600	1.59 (1/16) 3.18 (1/8) 4.78 (3/16) 6.35 (1/4)	921 (1690) 1071 (1960) 1149 (2100) 1149 (2100)	TJ36-CAIN-116(*)-(**)-CC TJ36-CAIN-18(*)-(**)-CC TJ36-CAIN-316(*)-(**)-CC TJ36-CAIN-14(*)-(**)-CC
	Super OMEGACLAD™ XL	1.59 (1/16) 3.18 (1/8) 4.78 (3/16) 6.35 (1/4)	1038 (1900) 1149 (2100) 1204 (2200) 1204 (2200)	TJ36-CAXL-116(*)-(**)-CC TJ36-CAXL-18(*)-(**)-CC TJ36-CAXL-316(*)-(**)-CC TJ36-CAXL-14(*)-(**)-CC
J Iron- Constantan	304SS	1.59 (1/16) 3.18 (1/8) 4.78 (3/16) 6.35 (1/4)	441 (825) 521 (970) 621 (1150) 721 (1330)	TJ36-ICSS-116(*)-(**)-CC TJ36-ICSS-18(*)-(**)-CC TJ36-ICSS-316(*)-(**)-CC TJ36-ICSS-14(*)-(**)-CC
T Copper- Constantan	304SS	1.59 (1/16) 3.18 (1/8) 4.78 (3/16) 6.35 (1/4)	260 (500) 316 (600) 371 (700) 371 (700)	TJ36-CPSS-116(*)-(**)-CC TJ36-CPSS-18(*)-(**)-CC TJ36-CPSS-316(*)-(**)-CC TJ36-CPSS-14(*)-(**)-CC

Notes: *Specify Junction: (G)rounded, (E)xposed or or (U)ngrounded.
**Specify length in inches: 6 for 150 mm (6 in.), 12 for 300 mm (12 in.), or 18 for 450 mm (18 in.).
Super OMEGACLAD™ XL probes (highlighted in yellow) are also available in N calibration; substitute NN for CA in Model Number.

View the Thermocouple Accuracy and Color Code charts
