Thermocouple Probes with BX Armor Cable & Standard Connector

$181.69
Excl GST: $165.17
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

TJ36-BX-chb

Calibration needed?

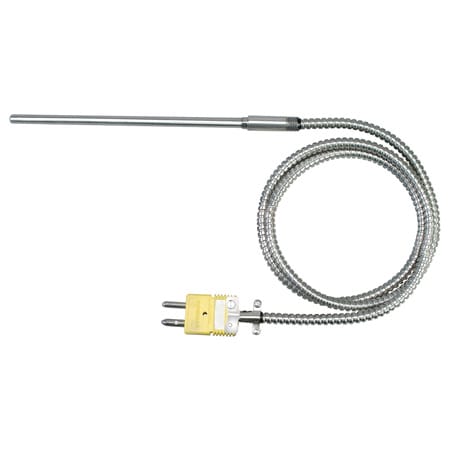

Thermocouple probe has a metal transition between the sensor & extension cable. Cable has BX armor over it to protect from damage and a standard size connector attached.
View full details
  • Description
  • Download Brochures
Matching Super OMEGACLAD™ XL mineral insulated thermocouple cable with our rugged transition joint probes and BX armored cable makes a combination that's hard to beat! Perfect for quick readings at higher temperatures or monitoring elevated temperatures for extended periods of time.

Calibration
ANSI Code 		Sheath
Materials 		Sheath Dia.
mm (in.) 		T/C Junction
Upper Temp.
°C (°F) 		Model Number
(See notes, below)
K
 CHROMEGA™-
ALOMEGA™ 		304SS 1.59 (1/16)
3.18 (1/8)
4.78 (3/16)
6.35 (1/4) 		899 (1650)
899 (1650)
899 (1650)
899 (1650) 		TJ36-CASS-116(*)-(**)-BX-OSTW-M
TJ36-CASS-18(*)-(**)-BX-OSTW-M
TJ36-CASS-316(*)-(**)-BX-OSTW-M
TJ36-CASS-14(*)-(**)-BX-OSTW-M
Inconel®
600 		1.59 (1/16)
3.18 (1/8)
4.78 (3/16)
6.35 (1/4) 		921 (1690)
1071 (1960)
1149 (2100)
1149 (2100) 		TJ36-CAIN-116(*)-(**)-BX-OSTW-M
TJ36-CAIN-18(*)-(**)-BX-OSTW-M
TJ36-CAIN-316(*)-(**)-BX-OSTW-M
TJ36-CAIN-14(*)-(**)-BX-OSTW-M
Super
OMEGACLAD™
XL 		1.59 (1/16)
3.18 (1/8)
4.78 (3/16)
6.35 (1/4) 		1038 (1900)
1149 (2100)
1204 (2200)
1204 (2200) 		TJ36-CAXL-116(*)-(**)-BX-OSTW-M
TJ36-CAXL-18(*)-(**)-BX-OSTW-M
TJ36-CAXL-316(*)-(**)-BX-OSTW-M
TJ36-CAXL-14(*)-(**)-BX-OSTW-M
J
Iron-
Constantan 		304SS 1.59 (1/16)
3.18 (1/8)
4.78 (3/16)
6.35 (1/4) 		441 (825)
521 (970)
621 (1150)
721 (1330) 		TJ36-ICSS-116(*)-(**)-BX-OSTW-M
TJ36-ICSS-18(*)-(**)-BX-OSTW-M
TJ36-ICSS-316(*)-(**)-BX-OSTW-M
TJ36-ICSS-14(*)-(**)-BX-OSTW-M
T
Copper-
Constantan 		304SS 1.59 (1/16)
3.18 (1/8)
4.78 (3/16)
6.35 (1/4) 		260 (500)
316 (600)
371 (700)
371 (700) 		TJ36-CPSS-116(*)-(**)-BX-OSTW-M
TJ36-CPSS-18(*)-(**)-BX-OSTW-M
TJ36-CPSS-316(*)-(**)-BX-OSTW-M
TJ36-CPSS-14(*)-(**)-BX-OSTW-M
Notes: *Specify Junction: (G)rounded, (E)xposed or or (U)ngrounded.
**Specify length in inches: 6 for 150 mm (6 in.), 12 for 300 mm (12 in.), or 18 for 450 mm (18 in.).
Super OMEGACLAD™ XL probes (highlighted in yellow) are also available in N calibration; substitute NN for CA in Model Number.

View the Thermocouple Accuracy and Color Code charts
