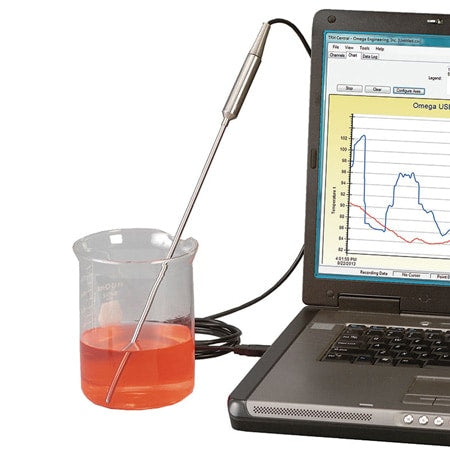

Omega's new TJ-USB Series USB thermocouple probe with direct USB connection feature a rugged transition joint construction, 2 m (6') of shielded output cable and free user software that converts your PC into a temperature meter, chart recorder or data logger. Probes are available off-the-shelf in 18 or 24" lengths and with 0.187 or 0.250" 304 stainless steel, Inconel or high performance Super OMEGACLAD XL® sheathing.
SPECIFICATIONS
Integral Thermocouple: Type-K, ungrounded
Measurement Range:
K1: -73 to 315°C / -100 to 600°F
K2: -200 to 1000°C / -328 to 1832°F
NOTE: For 304 stainless steel max temperature is 850°C (1562°F)
Accuracy:
K1: ±1°C (1.8°F), Below 0C - ±2°C (3.6°F)
K2: ±2°C (3.6°F), Below 0C - ±2°C (3.6°F), Below -100C - ±4°C (7.2°F)
Resolution:
TJ-USB-K1: 0.1°
TJ-USB-K2: 1°
Stability:
TJ-USB-K1: ±0.25°C,
TJ-USB-K2: ±0.5°C
Cold Junction Compensation (Automatic): -10 to 70°C
Operating Environment (Cold End): -10 to 70°C, 0-95% relative humidity (non-condensing)
PC Interface: USB
USB Cable: Integral to probe, 2 m (6') (shielded) Type A plug
Software (Included): Requires Windows 2000, XP, or Vista operating system
Weight: 70 g (2.5 oz)
SPECIFICATIONS
Integral Thermocouple: Type-K, ungrounded
Measurement Range:
K1: -73 to 315°C / -100 to 600°F
K2: -200 to 1000°C / -328 to 1832°F
NOTE: For 304 stainless steel max temperature is 850°C (1562°F)
Accuracy:
K1: ±1°C (1.8°F), Below 0C - ±2°C (3.6°F)
K2: ±2°C (3.6°F), Below 0C - ±2°C (3.6°F), Below -100C - ±4°C (7.2°F)
Resolution:
TJ-USB-K1: 0.1°
TJ-USB-K2: 1°
Stability:
TJ-USB-K1: ±0.25°C,
TJ-USB-K2: ±0.5°C
Cold Junction Compensation (Automatic): -10 to 70°C
Operating Environment (Cold End): -10 to 70°C, 0-95% relative humidity (non-condensing)
PC Interface: USB
USB Cable: Integral to probe, 2 m (6') (shielded) Type A plug
Software (Included): Requires Windows 2000, XP, or Vista operating system
Weight: 70 g (2.5 oz)
