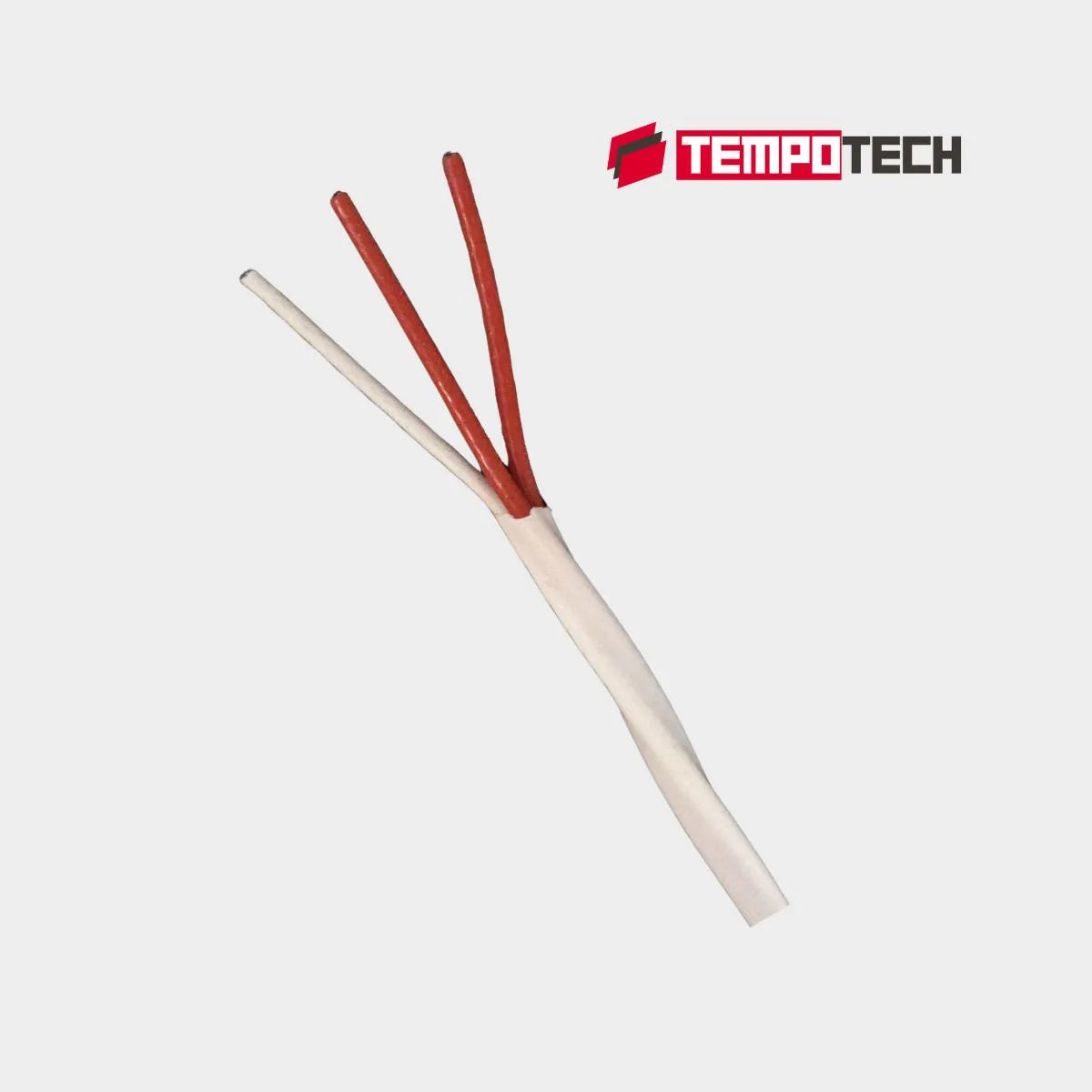

TEFLON-Insulated RTD wire non shielded -FEP (-200° C to + 205°C)
Taxes included.
Shipping calculated at checkout.
SKU:
- Description
FEP: Color-coded FEP Teflon® is extruded over each single conductor. The single insulated conductors are twisted and insulated with an extruded white jacket of FEP Teflon®
Key Features
- Rated for continuous use at 400° F (205º C).
- Available in nickel plated, Silver plated and Tin plated conductors.
- Available in Type 3 , 4 and 6 Conductors
- Singles: PFA Teflon®‡ 8 mil nominal
- Jacket: PFA Teflon®‡ 10 mil nominal
Comparison to Other Constructions
Abrasion Resistance – Fair
Chemical Resistance – Good
Moisture Resistance – Good
Application Note
RTD cables transmit or extend the signal produced by Resistance Temperature Detectors (RTDs) and are commonly constructed with copper-stranded wire coated with materials like nickel, silver, or tin to reduce added resistance in the temperature measurement signal and endure various environmental conditions.
×
