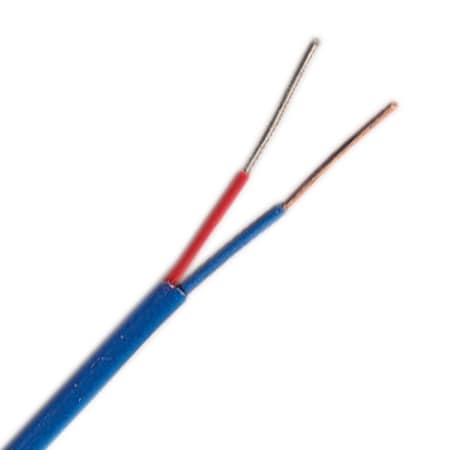

T Type Thermocouple Duplex Extension Wire

$527.68
Excl GST: $479.71
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

EXTT-TX-WIRE

Calibration needed?
Duplex thermocouple extension wire for Type T (TX) calibration. PFA, PVC, or FEP insulation
View full details
  • Description
  • Download Brochures
ANSI Color Code :Positive Wire, Purple; Negative Wire, Red; Overall, Brown
Insulation AWG No. Model Number Type Wire Insulation  Max. Temp* Nominal Size Wt.† lb/1000'
Conductor Overall °F °C
PFA

Neoflon

PFA		 16 EXTT-T-16 Solid PFA PFA 212 100 .086 x .152 16
20 EXTT-T-20 Solid PFA PFA 212 100 .068 x .116 9
24 EXTT-T-24 Solid PFA PFA 212 100 .056 x .092 6
Polyvinyl 14 EXPP-T-14 Solid Polyvinyl Polyvinyl 212 100 .134 x .288 29
16 EXPP-T-16 Solid Polyvinyl Polyvinyl 212 100 .123 x .207 22
20 EXPP-T-20 Solid Polyvinyl Polyvinyl 212 100 .095 x .151 12
20 EXPP-T-20S 7 x 28 Polyvinyl Polyvinyl 212 100 .123 x .075 12
24 EXPP-T-24 Solid Polyvinyl Polyvinyl 212 100 .082 x .0134 4
24 EXPP-T-24S 7x32 Polyvinyl Polyvinyl 212 100 .082 x .0134 9
PFA

Neoflon

FEP		 16 EXFF-T-16 Solid FEP FEP 212 100 .086 x .152 16
20 EXFF-T-20 Solid FEP FEP 212 100 .068 x .116 9
24 EXFF-T-24 Solid FEP FEP 212 100 .056 x .092 6

*Maximum temperature is for extension grade wire or insulation, whichever is lower.
†Weight of spool and wire, rounded up to next highest lb. (does not include packing material).
