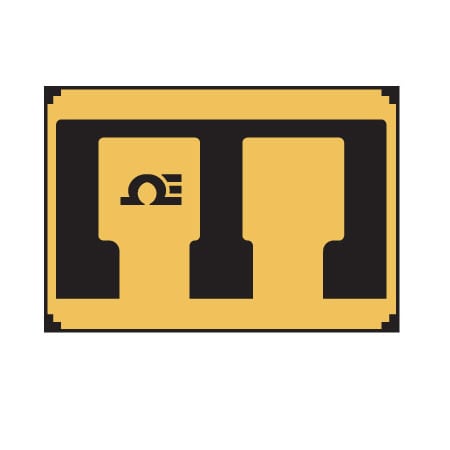

Strain Gauge Resistors for Balancing and Temperature Compensation
Regular price
$372.53
Excl GST: $338.66
Excl GST: $338.66
Taxes included.
Shipping calculated at checkout.
SKU :
SKU:BRIDGE-BALANCING-0-SGN
This series of resistors have high stability for bridge balancing and temperature compensation on circuits. Available with constantan or nickel foil measuring grid.
Couldn't load pickup availability
- Description
| SPECIFICATIONS | RES-C | RES-N |
| Foil Measuring Grid | Constantan foil 5 microns thick | Nickel foil 5 microns thick |
| Carrier | Polyimide | Polyimide |
| Substrate Thickness | 20 microns | 20 microns |
| Tolerance in Ω | ±1 Ω | ±1 Ω |
| Temp Coefficient of Resistance | —— | 0.6%/°C (0.34%/°F) |
| Temperature Range | -75 to 200°C (-100 to 392°F) | 0 to 100°C (32 to 212°F) |
×
