Spring Loaded Thermocouple Probes Protection Heads
Regular price
$269.18
Excl GST: $244.71
Excl GST: $244.71
Taxes included.
Shipping calculated at checkout.
SKU :
SKU:NB1-ICIN-TBSL-SPRING-TC
Spring loaded protection heads with 1/2" NPT mounting threads. Ideal for use with thermowells. Standard and configurable probe options including types K, T, J, E and N.
Couldn't load pickup availability
- Description
- Download Brochures

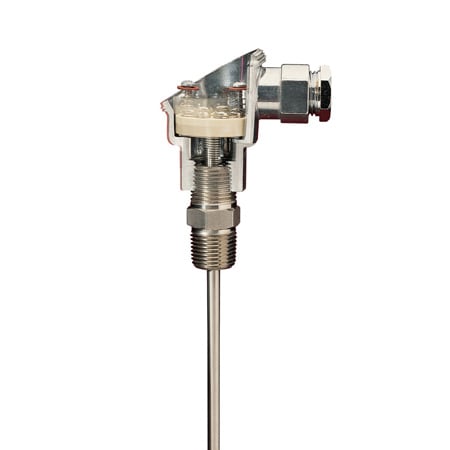

These spring loaded probe assemblies offer a choice of two styles of protection heads to meet environmental and size requirements. The probes can move up to 1/2 " in the direction of the head's axis. The thermocouples are available in J, K, T or E calibrations, with either 304SS or Inconel® sheathing (high temperature Super OMEGACLAD™XL or 321SS provided on request).
Standard lengths are 12" including 1/2" for the pipe thread in the relaxed state. Other probe lengths are available. Both the thread on the spring loaded probe and the extension wire opening are 1/2" NPT. The NB2 head includes a compression fitting nut and rubber ferrule for 1/8" to 1/4" O.D. wires or tubing.
The moving internal terminal block with attached probe is standard on all models. Consult the Custom Engineering Dept. for price and delivery on a wide variety of non-metallic and other specialized heads.
View the Thermocouple Accuracy and Color Code charts
Standard lengths are 12" including 1/2" for the pipe thread in the relaxed state. Other probe lengths are available. Both the thread on the spring loaded probe and the extension wire opening are 1/2" NPT. The NB2 head includes a compression fitting nut and rubber ferrule for 1/8" to 1/4" O.D. wires or tubing.
The moving internal terminal block with attached probe is standard on all models. Consult the Custom Engineering Dept. for price and delivery on a wide variety of non-metallic and other specialized heads.
View the Thermocouple Accuracy and Color Code charts
×
