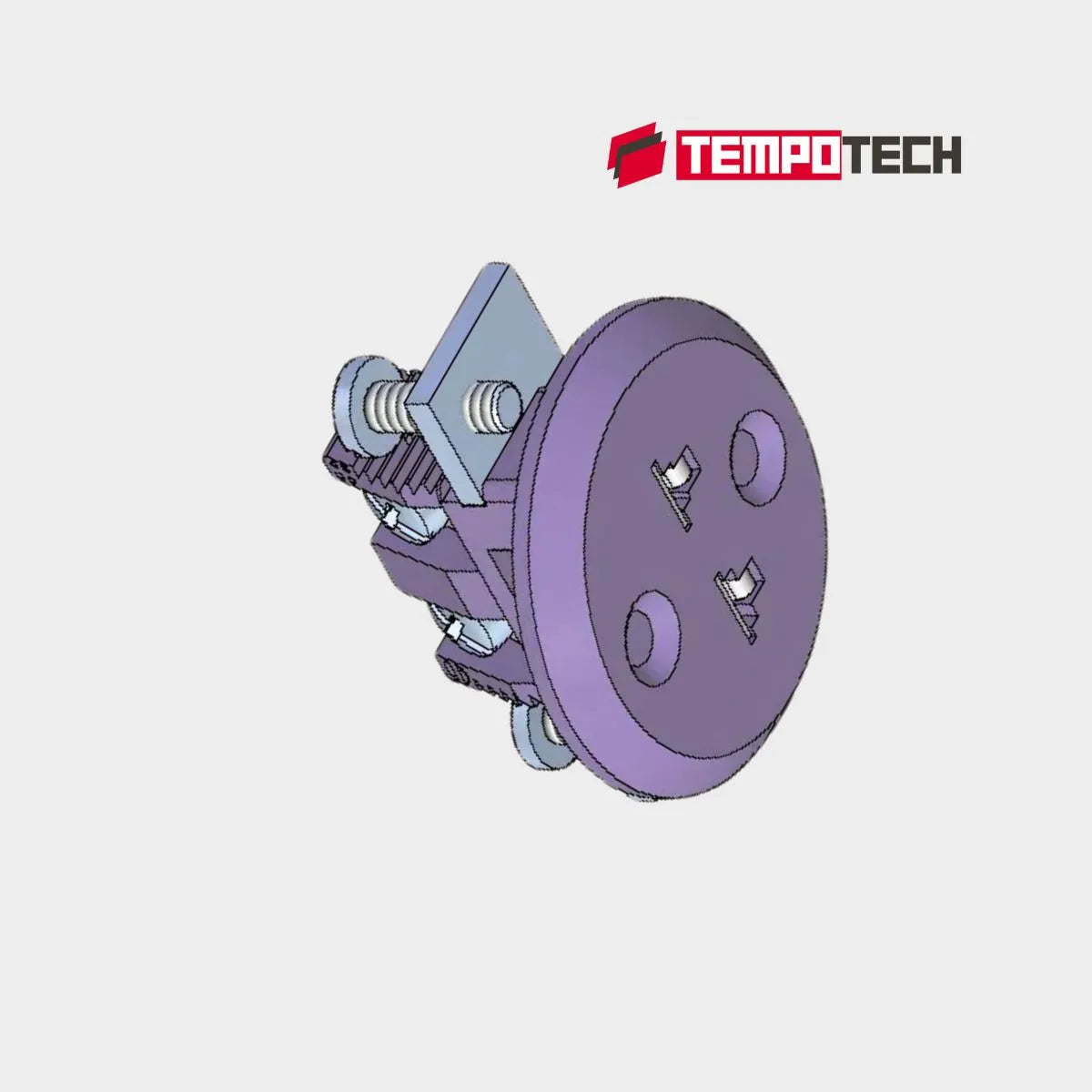

SPIR-STANDARD ROUND PANEL INSERT DIRECT MOUNT & BRACKET MOUNT

Taxes included. Shipping calculated at checkout.

View full details
  • Description

Panel insert for thermocouple and RTD circuits. Specially designed to be used together with panel set.

Construction

  • Glass filled thermoplastic body with original thermocouplematerial pins and springloaded inserts.
  • Polarized pins.
  • Central cover screw design for quick wiring.
  • Molded barriers prevent short circuit.
  • Captive cover screw for easy assembly.

Wire size

  • Accepts wires up to 1,6 mm.
  • Maximum cable diameter 8,0 mm.

 Temperature rating

220 °C Max. For Std.

350 °C Max  For High Temp
