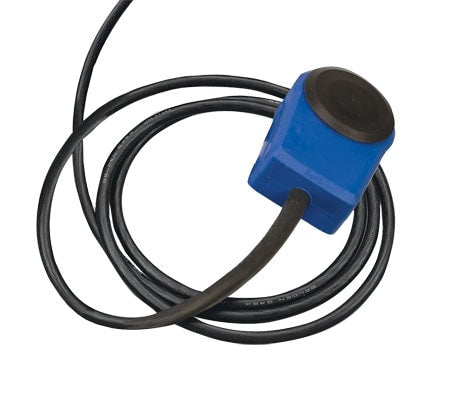

Speed Sensor for Direct Motor Shaft Mount

$518.78
Excl GST: $471.62
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

OMDC-PU-E

Calibration needed?
This sensor series mounts directly to an AC or DC motor shaft to monitor speed and direction with a square wave output. NEMA 3R models are also suitable for outdoor use.
View full details
  • Description
  • Download Brochures
The OMDC-PU-E pick-up sensor is an economical and reliable way to monitor motor speed. Its unique design provides ease of installation in otherwise difficult to reach areas. The OMDC-PU-E pick-up sensor operates at a 5 to 24 volt level producing a sharp square wave output, which may be fed into tachometer, closed-loop control, counter, or any other digital device. The OMDC-PU-E pick-up series also includes a quadrature model to monitor both motor speed and direction by providing two square wave output signals 81° out-of-phase.
View Specs for easy mounting instructions.

New outdoor (NEMA 3R) models available: OMDC-PU-R series
