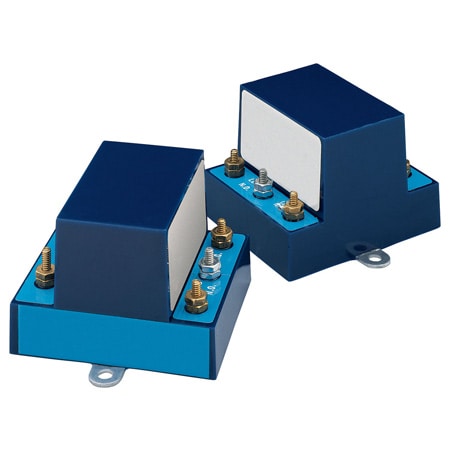

Solid-State Relays for Intrinsic Safety up to 5A max.

$699.13
Excl GST: $635.57
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

SBG22445-25872-25873-41705

Calibration needed?
Less than 100 microamps at 14 Vdc actuates the unit to control ac loads to 5 amps at 120 Vac and 230 Vac models, Less than 100 microamps at 14 Vdc actuates.
View full details
  • Description
  • Download Brochures
Solid-State Relay:
Less than 100 microamps at 14 Vdc actuates the unit to control ac loads to 5 amps at 120 Vac. Resistive (up to 400,000 ohms) or short-circuiting sensors operate the unit. 115 Vac and 230 Vac models.

Latching Solid-State Relay:
Momentary actuation, “start-stop” or differential control switching for resistive loads to 0.3 amps, 115 Vac model. OMEGA™ solid-state relays for intrinsic safety allow non-voltage producing switches mounted in the hazardous area to safely control higher power ac loads in the nonhazardous area. Typical applications include flow, level and pressure switches which may be inputs to an alarm or control system.



Model No. Description Line & Load
Voltage
Range		 Load
Current
Max		 Turn-On
Sensitivity
(Typical)		 Turn-Off
Sensitivity
(Typical)		 Voltage
Loss		 Operating
Temperature
Range		 Output
Leakage
Current Max.		 Switching
Operation
SBG22445A
 SSR for
Intrinsic
Safety
95 to
135 Vac		 5A <=400 K Ω 1 meg. Ω 2 Vac 0° to +120°F
6 mA @
120 Vac		 SPST N.O.
SBG25872A 100 to
135 Vac		 6 mA @
120 Vac		 SPST N.C.
SBG25873A 200 to
250 Vac		 12 mA @
250 Vac		 SPST N.O.
SBG41705A Latching SSR
for Intrinsic
Safety		 105 to
125 Vac		 0.3 A
Steady
State		 <=25 K Ω 1 meg. Ω 2 Vac +32° to +°120°F 3 mA @
120 Vac		 SPST N.O.
Note 1: For typical wiring diagrams, see next page.
Note 2: All ac voltage and current specifications are RMS values unless otherwise stated.
Note 3: Housing material is Polysulfone.
