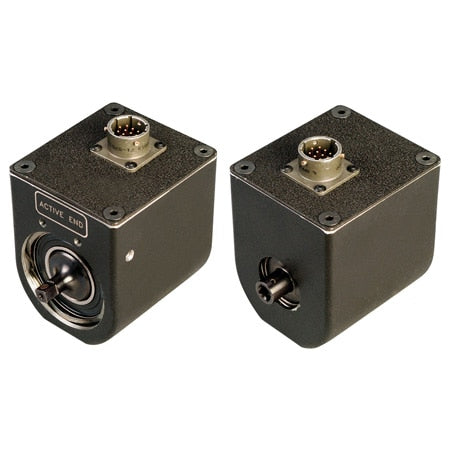

Socket Extension Connection for Rotary Torque Sensors
Regular price
$6,467.46
Excl GST: $5,879.51
Excl GST: $5,879.51
Taxes included.
Shipping calculated at checkout.
SKU :
SKU:TQ502A
The TQ502A series is ideal for drive and socket systems in production fastening applications. They can be used for static or dynamic torque measurement.
Couldn't load pickup availability
- Description
- Download Brochures
SPECIFICATIONS
Rated Output: 1.5 to 3 mV/V nominal (calibration sheet provided)
Excitation: 20 Vdc maximum
Linearity: ±0.10% FS
Hysteresis: ±0.10% FS
Repeatability: ±0.1% FS
Zero Balance: ±1.0% FS
Operating Temp Range: -55 to 120°C (-65 to 250°F)
Compensated Temp Range: 21 to 75°C (70 to 167°F)
Thermal Effects:
Zero: ±0.002% FS/°F
Span: ±0.002% rdg/°F
Overload Capacity: 150% FS
Bridge Resistance: 1000 Ω
Maximum rpm: 5000
Construction:
Sensor: Alloy steel
Housing: Alloy aluminum
Electrical: Mating connector supplied
OPTIONS
Add as suffix after part number
-MB, Mounting Foot
-EN1024, 1024 ppr Angle Encoder
Rated Output: 1.5 to 3 mV/V nominal (calibration sheet provided)
Excitation: 20 Vdc maximum
Linearity: ±0.10% FS
Hysteresis: ±0.10% FS
Repeatability: ±0.1% FS
Zero Balance: ±1.0% FS
Operating Temp Range: -55 to 120°C (-65 to 250°F)
Compensated Temp Range: 21 to 75°C (70 to 167°F)
Thermal Effects:
Zero: ±0.002% FS/°F
Span: ±0.002% rdg/°F
Overload Capacity: 150% FS
Bridge Resistance: 1000 Ω
Maximum rpm: 5000
Construction:
Sensor: Alloy steel
Housing: Alloy aluminum
Electrical: Mating connector supplied
OPTIONS
Add as suffix after part number
-MB, Mounting Foot
-EN1024, 1024 ppr Angle Encoder
×
