Small Diameter Inductive Proximity Sensors, range from 0.8 to 3mm
Small Diameter Inductive Proximity Sensors, range from 0.8 to 3mm
Regular price
$293.71
Excl GST: $267.01
Excl GST: $267.01
Taxes included.
Shipping calculated at checkout.
SKU :
SKU:E57-SD-Series

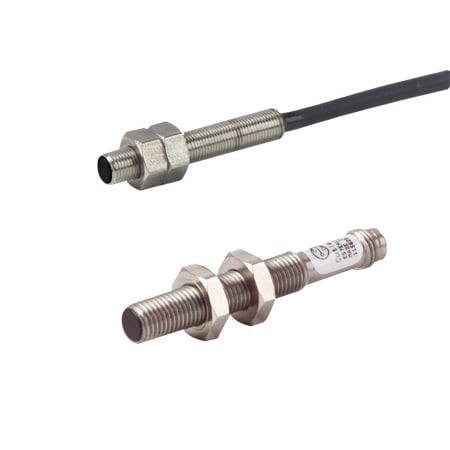

These unique Cutler-Hammer® Inductive Proximity Sensors are designed to be used in extremely small spaces. Available in housing diameters of 8 mm (0.31') and 5 mm (0.20').
Couldn't load pickup availability
- Description
- Download Brochures
These unique Cutler-Hammer® Inductive Proximity Sensors are designed to be used in extremely small spaces. A wide variety of models are available with housing diameters of 8 mm (0.31') and a very small 5 mm (0.20'), allowing you to choose the one that best fits your application. The sensors are 3-wire devices that operate from 10 to 30 Vdc. Both shielded and unshielded versions are available.
SPECIFICATIONS
Operating Voltage: 10 to 30 Vdc
Maximum Load Current: 200 mA
Switching Frequency: 2 kHz
Leakage Current: 0.01 mA maximum
Voltage Drop: 1.5V maximum
Burden Current: 10 mA maximum
Protection Transient: Power on false pulse suppression, auto-reset short circuit
Switching Hysteresis: <15% rated sensing distance
Repeat Accuracy: <1% sensing distance
Time Delay Before Availability: <50 mS
Output Indicator LED: Lights when output is ON
Operating Temperature: -25 to 70°C (-13 to 158°F)
Enclosure Ratings: NEMA 4, 4X, 6, 6P, 12 and 13 (IP67)
Housing Material: Stainless steel or Ni plated brass
Cable: PVC high flex, oil/water resistant, 22 AWG
Wiring Diagrams (Pin Numbers Are for Reference, Rely on Pin Location When Wiring)
SPECIFICATIONS
Operating Voltage: 10 to 30 Vdc
Maximum Load Current: 200 mA
Switching Frequency: 2 kHz
Leakage Current: 0.01 mA maximum
Voltage Drop: 1.5V maximum
Burden Current: 10 mA maximum
Protection Transient: Power on false pulse suppression, auto-reset short circuit
Switching Hysteresis: <15% rated sensing distance
Repeat Accuracy: <1% sensing distance
Time Delay Before Availability: <50 mS
Output Indicator LED: Lights when output is ON
Operating Temperature: -25 to 70°C (-13 to 158°F)
Enclosure Ratings: NEMA 4, 4X, 6, 6P, 12 and 13 (IP67)
Housing Material: Stainless steel or Ni plated brass
Cable: PVC high flex, oil/water resistant, 22 AWG
Wiring Diagrams (Pin Numbers Are for Reference, Rely on Pin Location When Wiring)
| OPERATING VOLTAGE 3-WIRE SENSORS | OUTPUT | CABLE MODELS | MICRO CONNECTOR MODELS (FACE VIEW MALE SHOWN) |
| 10 to 30 Vdc | NO (NPN) | ||
| NO (PNP) |
| TYPE | MODEL NO. | OPERATING VOLTAGE | SENSING RANGE mm (in) | SHIELDING | CONNECTION TYPE m (ft) |
| 5 mm (0.20') Dia. End Sensing NO Output SS Case | E57EAL5T110SP | 10 to 30 Vdc | 0.8 (0.03) | Shielded NPN | 2 (6) cable |
| E57EAL5T111SP | Shielded PNP | ||||
| 8 mm (0.31') Dia. End Sensing NO Output Ni-Brass Case | E57-08GS01-C | 10 to 30 Vdc | 1 (0.04) | Shielded NPN | 2 (6) cable |
| E57-08GS01-CDB | 4-pin micro DC connector | ||||
| E57-08GS01-G | Shielded PNP | 2 (6) cable | |||
| E57-08GS01-GDB | 4-pin micro DC connector | ||||
| E57-08GU02-C | 2 (0.08) | Unshielded NPN | 2 (6) cable | ||
| E57-08GU02-CDB | 4-pin micro DC connector | ||||
| E57-08GU02-G | Unshielded PNP | 2 (6) cable | |||
| E57-08GU02-GDB | 4-pin micro DC connector | ||||
| E57-08GE03-C | 3 (0.1) Extended Range | Shielded NPN | 2 (6) cable | ||
| E57-08GE03-CDB | 4-pin micro DC connector | ||||
| E57-08GE03-G | Shielded PNP | 2 (6) cable | |||
| E57-08GE03-GDB | 4-pin micro DC connector |
×
