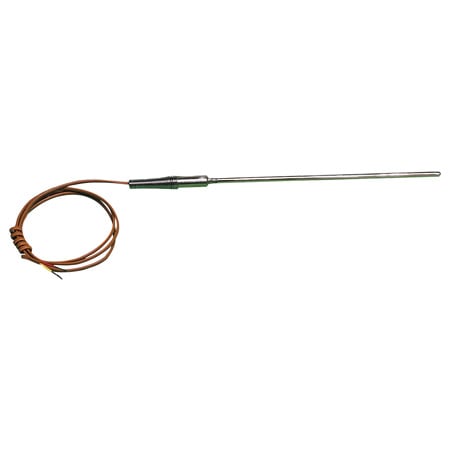

Small Diameter Immersion Thermocouple Probes with PFA cable

$145.42
Excl GST: $132.20
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

TJ36-PFA-chb

Calibration needed?
Configurable thermocouples with 0.010", 0.020", 0.032", or 0.040" diameter probes, metal transition joints and PFA insulated extension wires.
View full details
  • Description
  • Download Brochures
OMEGA's fine diameter transition joint thermocouple probes provide durability and fast, accurate temperature measurements. Diameters as small 0.25mm (0.010") allow "pin-point" accuracy of measured values while protecting the measurement junction inside the metal sheathing and mineral insualtion of the OMEGACLAD™ cable . The metal transition barrel provides a solid mounting surface and the PFA insulated lead wire is a cost-effective solution for environmental temperatures to 260°C (500°F). For extended life, low drift operation at higher temperatures, choose Super OMEGACLAD™ XL sheathing, available in Type K and N calibrations.

Calibration
ANSI Code 		Sheath
Materials 		Sheath Dia.
mm (in.) 		T/C Junction
Upper Temp.
°C (°F) 		Model Number
(See notes, below)
K
CHROMEGA™-
ALOMEGA™ 		304SS 0.25 (0.010)
0.50 (0.020)
0.80 (0.032)
1.00 (0.040) 		500 (932)
700 (1290)
700 (1290)
700 (1290) 		TJ36-CASS-010(*)-(**)
TJ36-CASS-020(*)-(**)
TJ36-CASS-032(*)-(**)
TJ36-CASS-040(*)-(**)
Inconel®
600 		0.25 (0.010)
0.50 (0.020)
0.80 (0.032)
1.00 (0.040)		 500 (932)
700 (1290)
700 (1290)
700 (1290)		 TJ36-CAIN-010(*)-(**)
TJ36-CAIN-020(*)-(**)
TJ36-CAIN-032(*)-(**)
TJ36-CAIN-040(*)-(**)
Super
OMEGACLAD™
XL 		0.25 (0.010)
0.50 (0.020)
0.80 (0.032)
1.00 (0.040) 		600 (1112)
800 (1472)
800 (1472)
800 (1472) 		TJ36-CAXL-010(*)-(**)
TJ36-CAXL-020(*)-(**)
TJ36-CAXL-032(*)-(**)
TJ36-CAXL-040(*)-(**)
J
Iron-
Constantan 		304SS 0.25 (0.010)
0.50 (0.020)
0.80 (0.032)
1.00 (0.040) 		260 (500)
260 (500)
260 (500)
260 (500) 		TJ36-ICSS-010(*)-(**)
TJ36-ICSS-020(*)-(**)
TJ36-ICSS-032(*)-(**)
TJ36-ICSS-040(*)-(**)
T
Copper-
Constantan 		304SS 0.50 (0.020)
0.80 (0.032)
1.00 (0.040) 		260 (500)
260 (500)
260 (500) 		TJ36-CPSS-020(*)-(**)
TJ36-CPSS-032(*)-(**)
TJ36-CPSS-040(*)-(**)
Notes: *Specify Junction: (G)rounded, (E)xposed or or (U)ngrounded.
**Specify length in inches: 6 for 150 mm (6 in.), 12 for 300 mm (12 in.),
Super OMEGACLAD™ XL probes (highlighted in yellow) are also available in N calibration; substitute "NN" for CA in Model Number.
