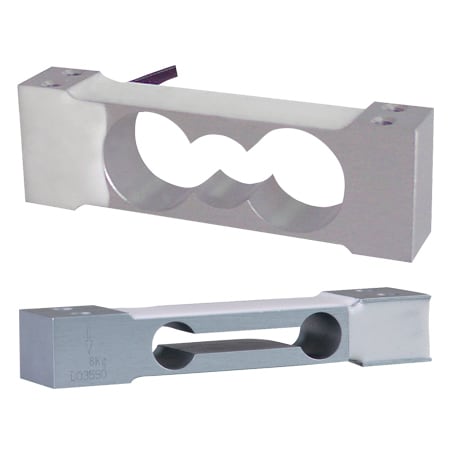

Single Point Load Cell with IP65 Rating

Omega’s LC60 Series is a low cost, highly accurate, single point load cell, ideal for OEM applications such as electronic scales and weighing machines. The single point design is highly resistant to eccentric loading, allowing direct mounting to the scale base and weighing platform. The LC60 Series features a moisture-proof sealant and is available in ranges from 600 grams to 200 kilograms.

Maximum Platform Size:

LC61SP: 200 x 200 mm (7.87 x 7.87")

LC62SP: 250 x 350 mm (9.84 x 13.77")

LC63SP: 400 x 400 mm (15.74 x 15.74")

Specifications
    LC62 and LC63: C3
    OIML R60 Accuracy Class: LC61: C3D
Output Sensitivity (= FS, mV/V):
    LC61: 1.0 ±0.1
    LC62 and LC63: 2.0 ±0.2
Maximum Number of Load Cell Intervals(nLC):
    LC61: 2500
    LC62 and LC63: 3000
Ratio of Minimum LC Verification Interval Y = Emax/vmin:
    LC61: 5000
    LC62 and LC63: 10000
Combined Error:
    LC61: ±0.028 %FS
    LC62 and LC63: ±0.02 %FS
Minimum Dead Load: 0% FS
Safe Overload: 120% FS
Maximum Overload: 150% FS
Zero Balance: ±2.0% FS
Excitation, Recommended Voltage: 5 to 12 VDC
Excitation Maximum: 18(VDC)
Input Resistance ?: 406 ±6
Output Resistance ?: 350 ±3
Insulation Resistance M?: ? 5000 (50 VDC)
Compensated Temperature: -10 to 40ºC (14 to 104ºF)
Operating Temperature: -35 to 65ºC (-31 to 149ºF)
Storage Temperature: -40 to 70ºC (-40 to 158ºF)
Element Material: Aluminum
Recommended Bolt Size/Torque (Nm):
    LC61: M3/1.5
    LC62: M6/6 for < 30kg, M6/10 for > 30kg
    LC63: M6/10
Ingress Protection (According to EN 60529): IP65

Figure 1            All Dimensions mm

Figure 2

Figure 3

Wiring
