Signaling Alarms - Dual Tone, NEMA 4X IP65 for Harsh Environments

$250.86
Excl GST: $228.05
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

M22-Srs-Signaling-Alarms

Calibration needed?
Signaling alarms -dual tone, nema 4x ip65 for harsh environments. Adjustable sound pressure levels. Selectable continuous/pulsing and wobble. Plug-in terminal block
View full details
  • Description
  • Download Brochures

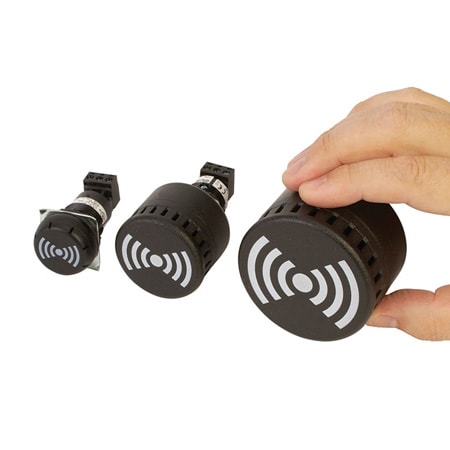

The M22 Series panel mount signaling alarms are made of heavy-duty industrial, UV stabilized polycarbonate and are intended for indoor or outdoor use. They are UL Type 4/4X/13 and IP65 approved for harsh environments and are watertight. The M22-30K models are specifically designed for the food industries and have fully enclosed housings to prevent contaminates from accumulating. The M22 series alarm sounders are equipped with a plug-in three point finger-safe terminal block for ease of wiring and configuring the tone type. All M22 models can be configured for either continuous or pulsing tones. The M22-65G models can also be wired for a wobble tone (alternating frequency). Users may also adjust the intensity of the sound levels on the 45 and 65 mm (1.8 and 2.6") alarm models.

Specifications
Materials: UV stabilized polycarbonate
Operating Temperature: -25 to 60°C (-13 to 140°F)
Mounting Nut Torque: 1.7 Nm (15 in/lbs)
Terminals: 14 AWG (2.5 mm2), IP2X

View Specs above for additional information.
