Series VFC & VFCII Visi-Float® Acrylic Flowmeter

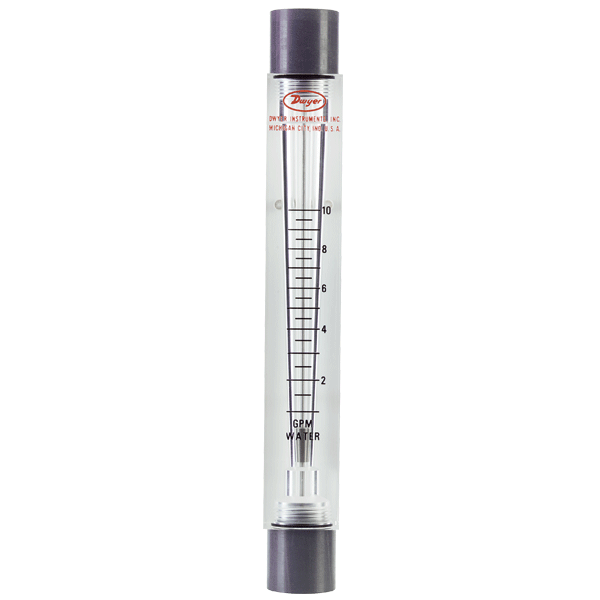

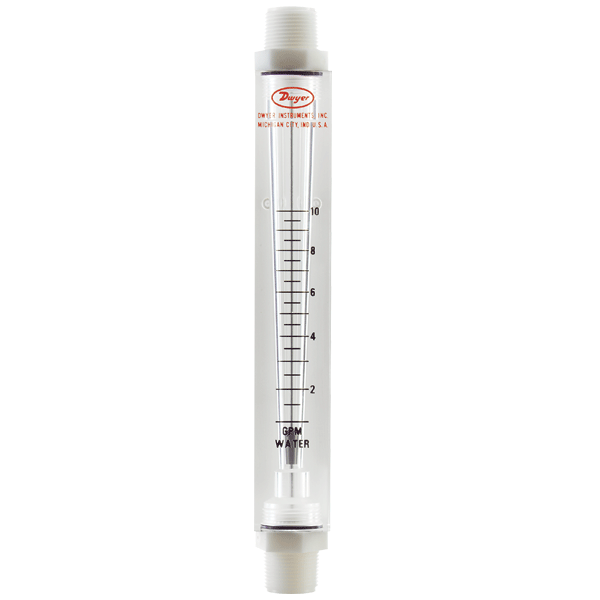

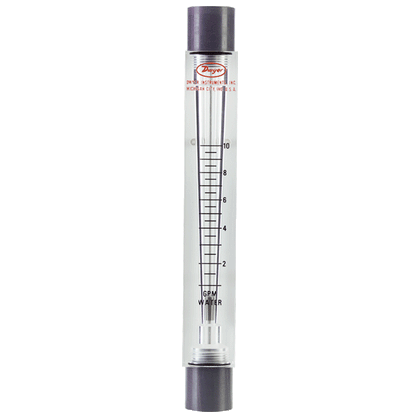

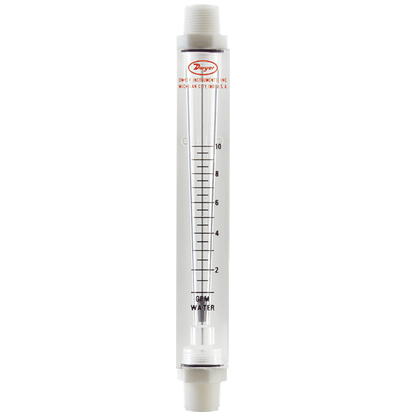

The Series VFC/VFCII Visi-Float® Acrylic Flowmeter by Dwyer Instruments is a precision-engineered, direct-reading variable area flowmeter designed for accurate measurement of gas and liquid flow rates. Constructed from clear acrylic, these flowmeters offer exceptional visibility of the float, ensuring easy and precise readings. The VFC model features 1" female NPT PVC connections, while the VFCII model is equipped with 1" male NPT acetal thermoplastic fittings, catering to different installation requirements.

Key Features:

Direct Reading Scales: Hot-stamped into the acrylic body, eliminating the need for conversions and enhancing durability.

Precision Machined Tapered Bore: Ensures high repeatability and consistent performance.

Clear Acrylic Body: Provides complete visual inspection capabilities.

White Background: Improves float visibility, increasing reading accuracy.

Versatile Applications: Suitable for both gas and liquid flow measurements.

Mounting Orientation: Designed for vertical mounting for optimal performance.

Temperature and Pressure Ratings: Operates effectively up to 120°F (48°C) and withstands proof pressures up to 100 psi.

Specifications:

Accuracy: ±2% of full scale.

Process Connection Size: 1" NPT (Female for VFC, Male for VFCII).

Wetted Materials: Stainless steel float, PVC (VFC) or acetal thermoplastic (VFCII) body.

Scale Length: 5 inches (127 mm).

Weight: Approximately 25 oz.
