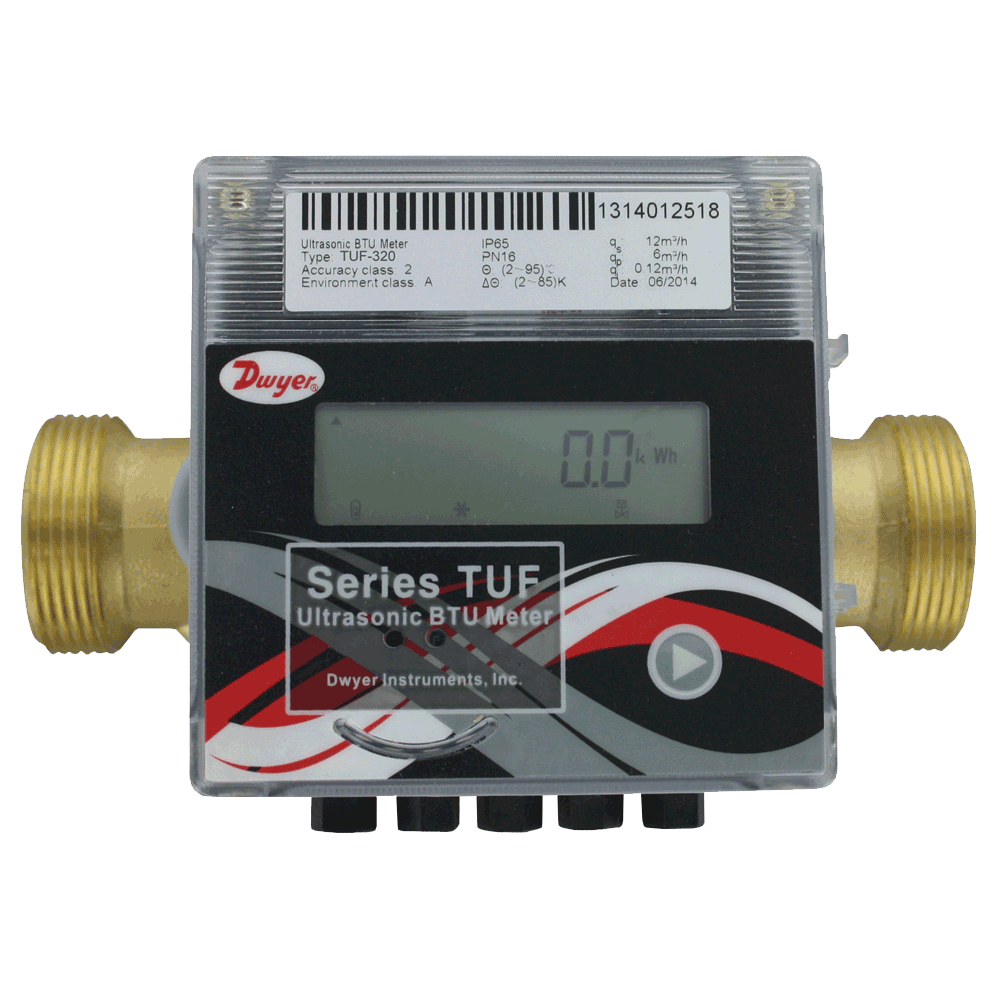

Series TUF Ultrasonic Energy Meter

Series TUF Ultrasonic Energy Meter

Taxes included. Shipping calculated at checkout.

SKU :

SeriesTUF

Calibration needed?

Ultrasonic Energy Meter
Energy Monitoring Capability, No Moving Parts, Compact and Light Weight

View full details
  • Description
  • Features
  • Download Brochures

Energy Monitoring Capability, No Moving Parts, Compact and Light Weight

The SERIES TUF Ultrasonic Energy Meter is a highly accurate and stable energy meter that utilizes ultrasonic technology to measure heating and cooling energy consumption. The Series TUF is a compact meter with a flowmeter and energy calculator in one, making it great for installation on chillers and boilers.

INSTRUCTIONS FOR ORDERING
• Choose 1 ultrasonic energy meter model (includes 2 BSPP pipe fittings, 2 tightening nuts, 2 o-rings, and 1 thermowell with welding collar)
• Choose 1 pipe fitting model given the appropriate fitting size if NPT or BSPT connections are required (for DN15 to DN40 only)*
Example: TUF-150-MD, Fitting Size: A, select pipe fitting Model WM-ACC-C01 or WM-ACC-C11.

Product Applications

  • Heat metering
  • Utilities billing
  • Tenant billing
  • Monitoring of water heating or cooling: radiators, fan coils
  • Lower maintenance costs with local parameter display and no moving parts
  • Serial communication output allows for easy transfer of data
  • Flow and temperature monitor in one unit eliminates the need for multiple units
