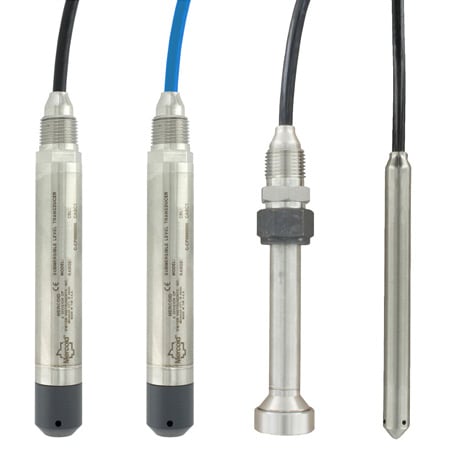

Series SBLTX Submersible Level Transmitter
Regular price
$1,778.56
Excl GST: $1,616.87
Excl GST: $1,616.87
Taxes included.
Shipping calculated at checkout.
SKU :
SKU:SBLTX-Series
SBTL2 and SBLTX Submersible Level Transmitters are manufactured for years of trouble free service in the harshest applications. Both measure the height of liquid above the position in the tank referenced to atmospheric pressure. The transmitter consists of a piezoresistive sensing element, encased in a 316 SS housing.
Couldn't load pickup availability
- Description
- Download Brochures
The Series SBLTX Submersible Level Transmitter provides accurate liquid level measurement in submerged or flooded environments. With a piezoresistive sensor and 316 stainless steel housing, it delivers reliable output proportional to liquid head pressure. Suitable for tanks, wells, sump pumps, and wastewater applications.
Key Features:
Piezoresistive sensor with 316 stainless steel housing
Output signal: 4–20 mA DC, 2‑wire
Accuracy: ±0.25% full scale
Compensated temperature range: 0 to 176°F
Operating temperature: -4 to 176°F
Cable length: 40 ft
Seals: Fluoroelastomer
Pressure limit: 2X full scale
Power requirement: 10–28 VDC
×
