Series RSF Rotatable Scale Flowmeters

Taxes included. Shipping calculated at checkout.

SKU :

SeriesRSF

Calibration needed?

Rotatable Scale Flowmeters
Dual, Rotatable Direct Reading Scales for Air and Water

View full details
  • Description
  • Download Brochures

Dual, Rotatable Direct Reading Scales for Air and Water

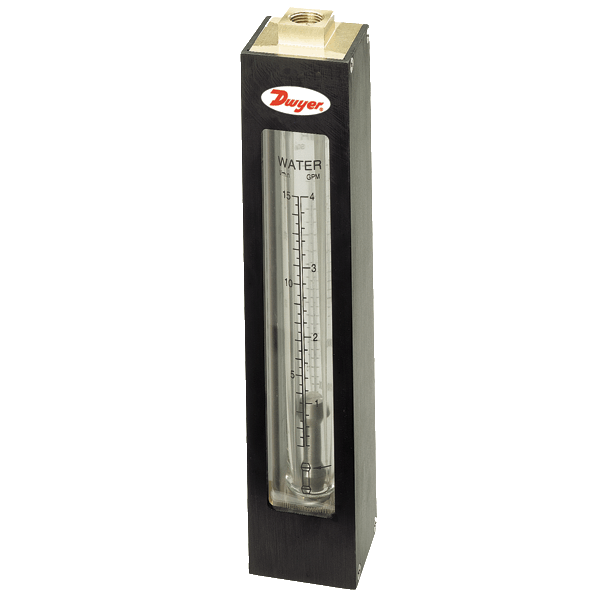

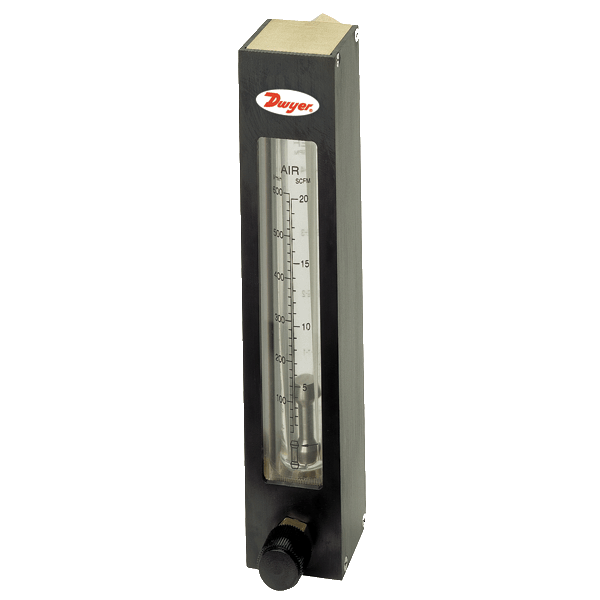

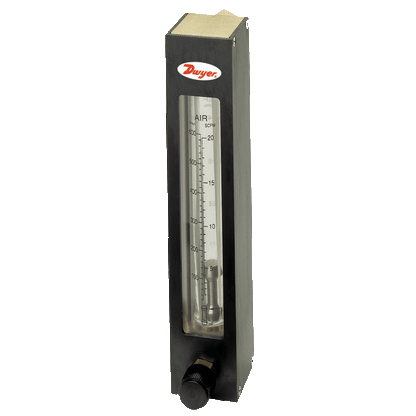

SERIES RSF Flowmeters are designed with unique rotatable scales of dual, air-water direct reading graduations. Flow rate is indicated in SCFM and SLPM for air and GPM and LPM for water. Graduations are marked on a rotating, polycarbonate tubeshield which also serves to protect the borosilicate glass flowtube. Flowmeters include a reflective plastic background and 1.5 X magnification lens to reduce eye fatigue and allow for more accurate readings. A blow-out back panel provides additional protection in the event of breakage. Series RSF Flowmeters are available in vertical in-line mounting or panel mounting. Units are shipped completely assembled and include standard mounting hardware for quick installation.

Note: For PTFE Models contact the factory.

Product Applications

  • Film processing
  • Paper manufacturing
  • Chemical processing
  • Semiconductor industry
  • Water and air pollution analysis equipment
  • Metals processing
  • Industrial fuel and energy conservation
  • Air metering
  • General laboratory and industrial applications
