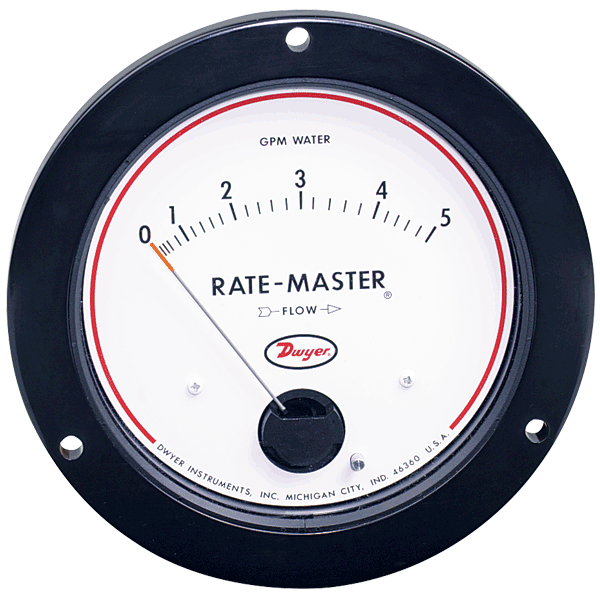

Series RMVII Rate-Master® Dial-Type Flowmeters

Taxes included. Shipping calculated at checkout.

SKU :

SeriesRMVII

Calibration needed?

Rate-Master® Dial-Type Flowmeters
For Panel Mounting, Three Ranges to 10 GPM Water

View full details
  • Description
  • Features
  • Download Brochures

For Panel Mounting, Three Ranges to 10 GPM Water

The SERIES RMVII Rate-Master® Flowmeters consists of a machined brass meter body which is ideally suited for water flows with ±5% of full scale accuracy. Body design fits standard 4-1/2" mounting hole layouts per ANSI B40.1. Inlet and outlet threads are standard 3/4" female NPT.

Product Applications

  • Monitor coolant flow through ingot heaters, high-amp switchgear, resistance welders, heat exchangers, compressors, scrubbers
  • Monitor water consumption to different processes and operations for more efficient operations
  • Calculate required fill or drain times for tanks, water towers
  • Unique construction fully isolates flowing media from gage front for leak-proof operation at pressures up to 3000 psig (206.7 bar)
  • Target-type design combined with a damage resistant magnetic linkage, drive a pointer over easy-to-read litho scale
  • Shatter proof construction, unlike glass tube variable area flowmeters, yields long operation life
