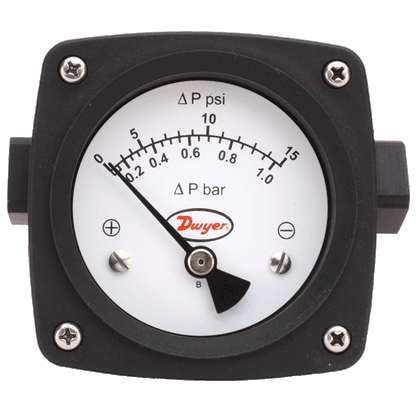

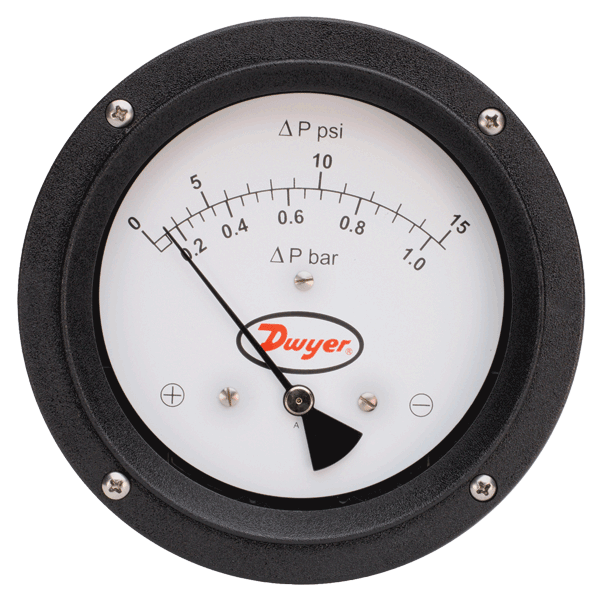

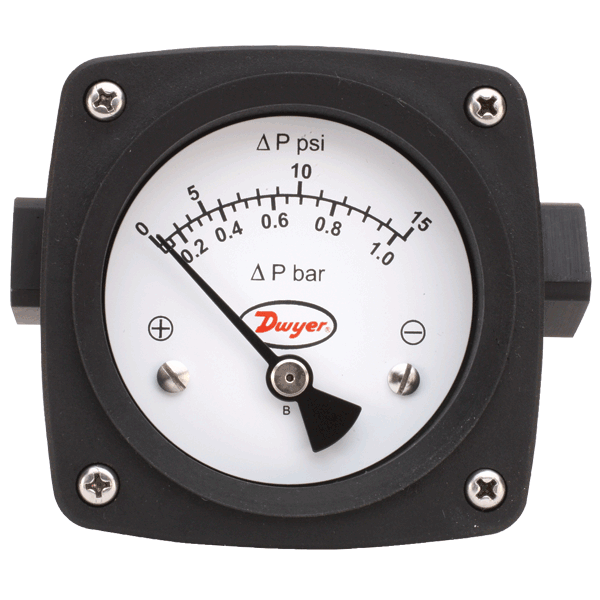

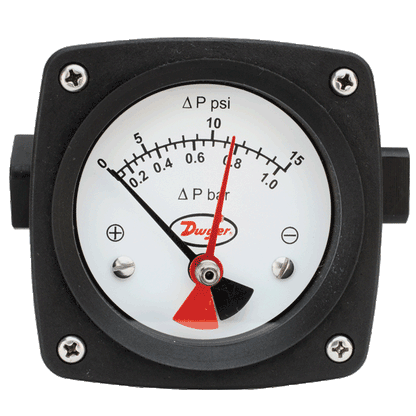

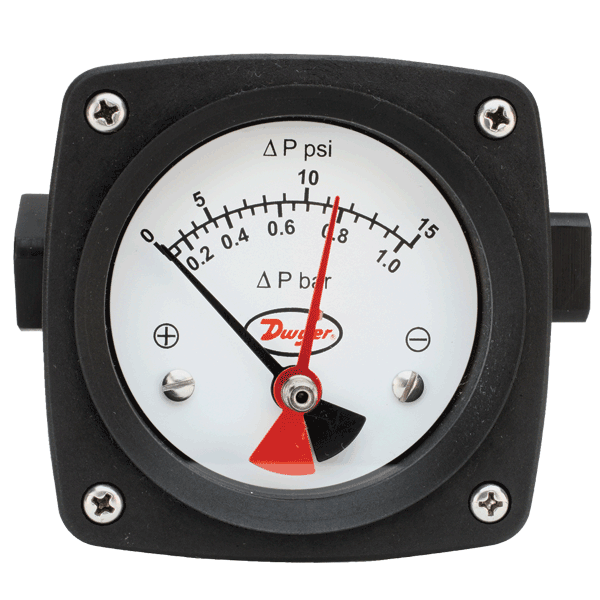

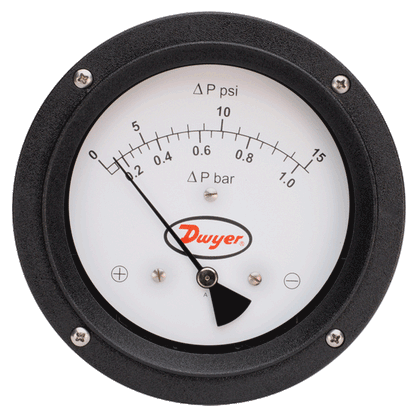

Series PTGD Differential Pressure Piston-Type Gage
SKU :
SKU:SeriesPTGD
Differential Pressure Piston-Type Gage
Excellent Accuracy and Over-Pressure Ratings
- Description
- Features
- Download Brochures
Excellent Accuracy and Over-Pressure Ratings
The SERIES PTGD Differential Pressure Piston-Type Gage can be used to measure the pressure drop across filters, strainers, pump performance testing, and heat exchanger pressure drop monitoring. Its simple, rugged design possesses weather and corrosion resistant gage front with a shatter resistant lens. The Series PTGD contains a piston-sensing element which provides different differential pressure ranges with full-scale accuracies of ±2%. Constructed with aluminum or 316SS and available with two 1/4" female NPT end connections, the Series PTGD provides over-range protection rated to 3000 psig (200 bar) or 6000 psig (400 bar) depending on model. Standard models come with in-line connections. Back or bottom connections are also available.
Product Applications
- Filter pressure drop
- Strainers
- Pump performance testing
- Heat exchanger pressure drop
- Rugged, weather and corrosive proof design supports use in harsh environments
- Over-protection range depending on model, up to 6000 psig (400 bar) allows high-pressure applications
- Flexibility of connection selection fits the most sophisticated designs
