Series L6 FLOTECT® Liquid Level Switch

Taxes included. Shipping calculated at checkout.

SKU :

SeriesL6

Calibration needed?
FLOTECT® Liquid Level Switch Easy In-wall or External Installation, Up to 2000 psig (138 bar)
View full details
  • Description
  • Features
  • Download Brochures

Easy In-wall or External Installation, Up to 2000 psig (138 bar)

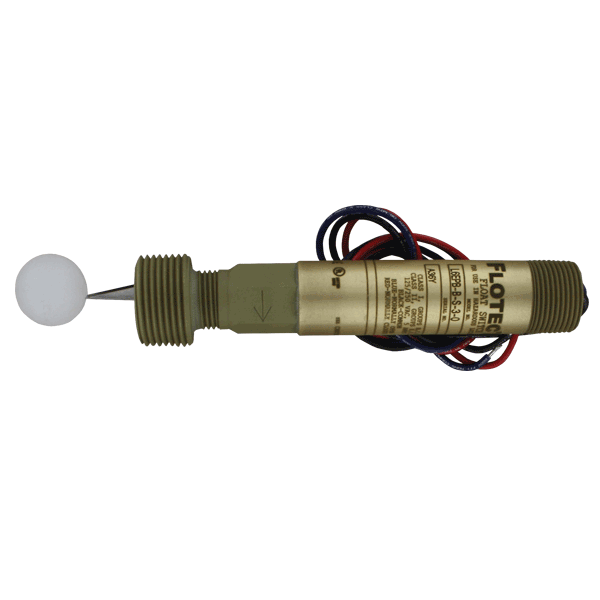

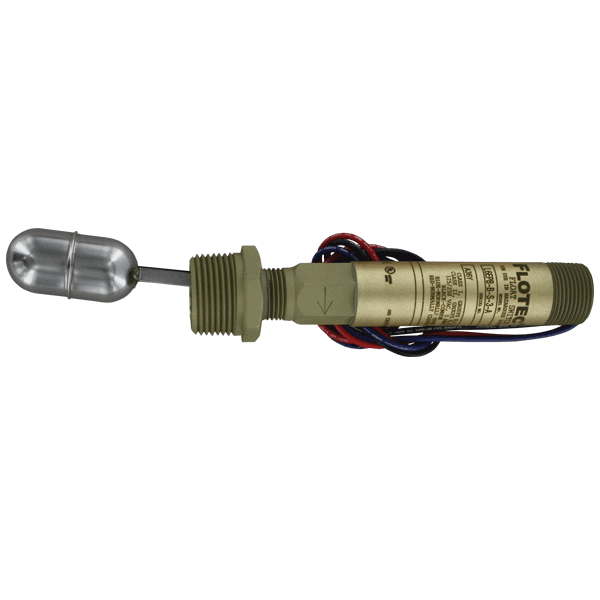

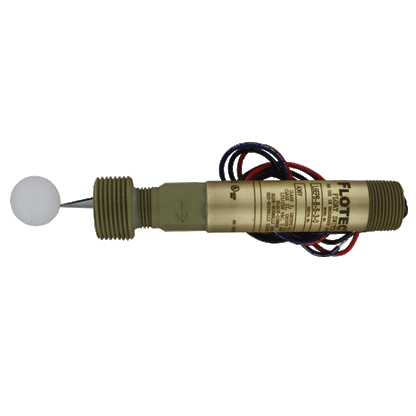

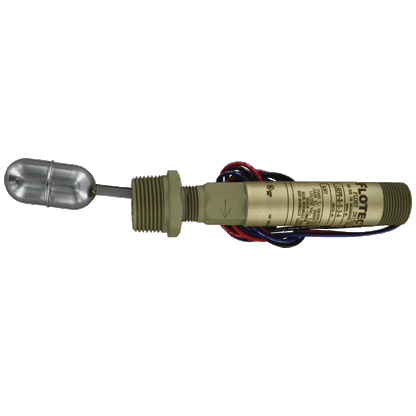

Surprisingly compact, the SERIES L6 Flotect® Level Switch is designed and built for years of trouble-free service in a wide variety of process liquid level applications. Operation is simple and dependable with no mechanical linkage as the level switch is magnetically actuated. The float lever pivoted within the body moves when the process liquid displaces the float. A magnet on the opposite end of the float lever controls a second magnet on the switch actuating lever located in the switch housing.

Product Applications

  • Direct pump control for maintaining level
  • Automatic tank dump operations
  • Level control
  • Valve control
  • Level alarm in sumps, scrubber systems, hydro-pneumatic tanks, boilers, and water/ wastewater treatment processes
  • Leak proof lower body machined from bar stock

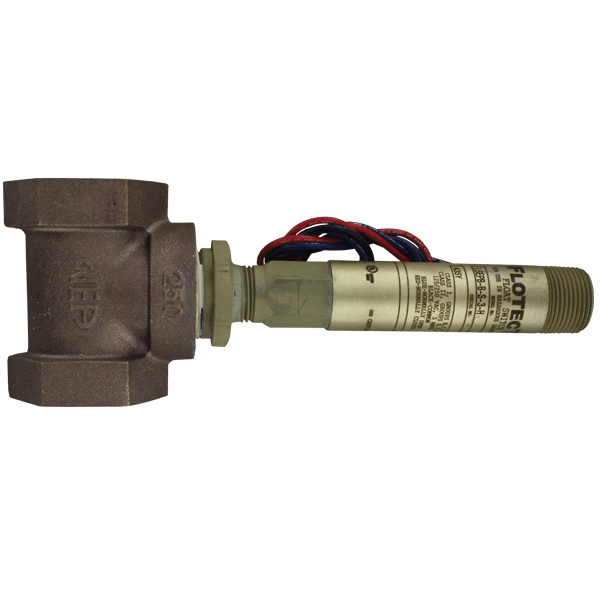

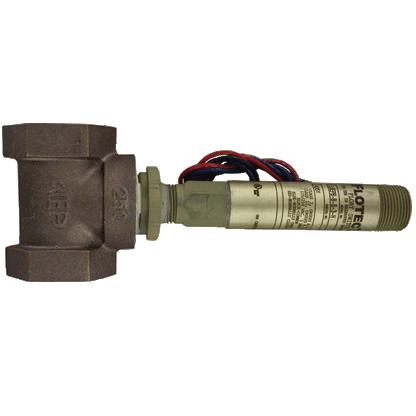

  • Choice of models for direct side wall mounting or mounted in a tee to act as an external float chamber
  • Weatherproof and explosion-proof body for demanding outdoor applications
  • Float lever pivoted within the body moves when the process liquid displaces the float and magnet on the opposite end of the float lever controls a second magnet on the switch actuating lever located in the switch housing
  • Electrical assembly can be easily replaced without removing the unit from the installation so that the process does not have to be shut down
  • Sensitive to level changes of less than 1/2" (12 mm)
  • Compact design is built for years of trouble-free service
  • Simple and dependable operation with no mechanical linkage
