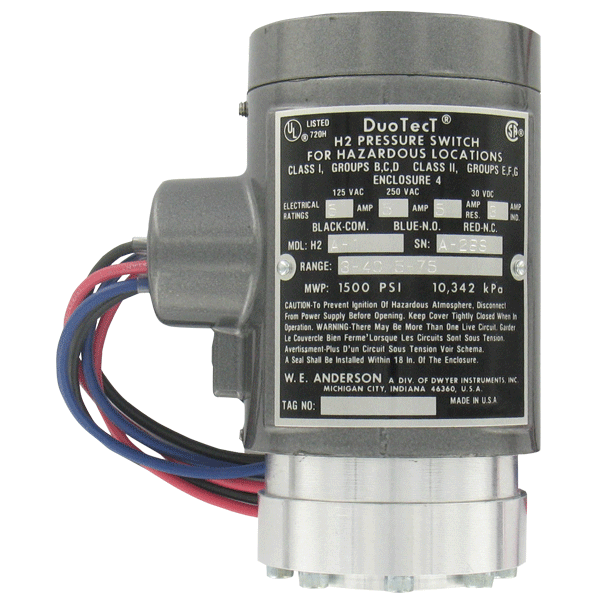

Series H2 Dual-Action Explosion-proof Pressure Switches

Taxes included. Shipping calculated at checkout.

SKU :

SeriesH2

Calibration needed?

Dual-Action Explosion-Proof Pressure Switches
Explosion-proof and Weatherproof Housing

View full details
  • Description
  • Features
  • Download Brochures

Explosion-proof and Weatherproof Housing

Explosion-proof, UL & CSA Listed for Class I, Groups B, C & D and Class II, Groups E, F & G. The SERIES H2 is designed for sequencing two different actions as pressure of a liquid or gas increases or decreases. The design consists of two concentric pistons operated by a single diaphragm with one pressure chamber. Each piston actuates a separate switch independent of the other. The switches may be adjusted to operate together, at opposite ends of the range or at two intermediate set points. The threaded top is removed to field adjust or service switches without disturbing electrical or pressure connections. The Duotect® switch is explosion-proof and weatherproof. It can be mounted in any position and is not affected by vibration.

Product Applications

  • Mechanical HVAC or process equipment
  • Chemical, petroleum, food and drug processing industries
  • Process and Industrial applications
  • Explosion-proof and weatherproof housing provides device protection for outdoor use or harsh environment operation
  • UL listed, CSA approved to support rigorous process applications and regulations
  • Independent piston action design for either gas or liquid allows switches to active together or independently based on settings
  • Mounting in any position and not affected by vibration provides reliable switching for equipment
