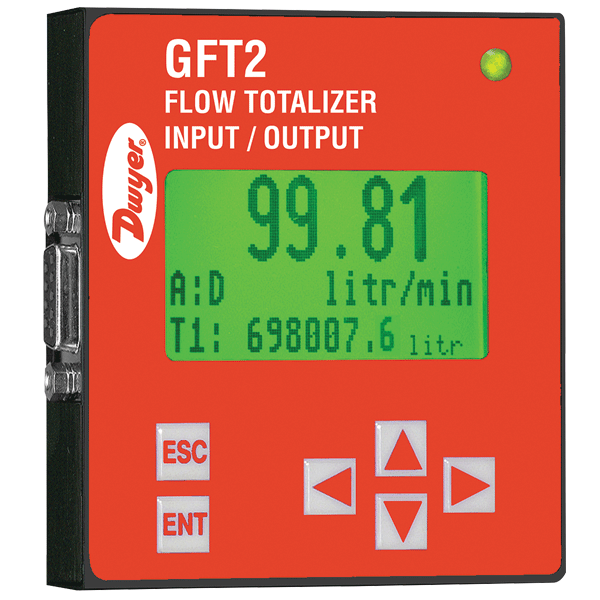

Series GFT2 Flow Totalizer

Taxes included. Shipping calculated at checkout.

SKU :

SeriesGFT2

Calibration needed?

Flow Totalizer
Graphic LCD, Digital RS-232 or RS-485 Interface

View full details
  • Description
  • Features
  • Download Brochures

The Series GFT2 Flow Totalizer is a smart, microcontroller-driven device that transforms analog flow meter output into refined, accurate data. Compatible with standard 0–5 VDC, 0–10 VDC, and 4–20 mA signals, it linearizes flow readings and clearly displays real-time flow rate, totalized volume, and cumulative total. The crisp graphic LCD is easy to read and supports adjustable backlighting and contrast. With support for RS-232 or RS-485 communication, this totalizer seamlessly integrates into modern control systems. Designed for diverse mounting setups—panel, field, or wall—it also includes low/high flow alarms and custom units (up to 47 types). A versatile and compact solution for fluid measurement in industrial or process environments.

Key Features:

Supports analog inputs (0–5 V, 0–10 V, 4–20 mA) from flow meters

Displays instantaneous flow, total, and cumulative flow on a graphic LCD

Programmable low/high flow alarms for operational safety

Digital communication via RS-232 or RS-485 for system integration

Offers up to 47 user-definable volume or mass units

Small form factor suitable for panel, wall, or field mounting

  • Up to 47 different volumetric and mass flow engineering units (including userdefined)

    • User adjustable LCD back light and contrast level

    • Compact design for unit mount, panel mount, wall mount, or field mount applications

    • Low and high flow alarms with programmable action delay

    • Free configuration and mounting utility software

    • 0.51" (13 mm) LCD digits for flow rate, and 0.21" (5.5 mm) digits for total
