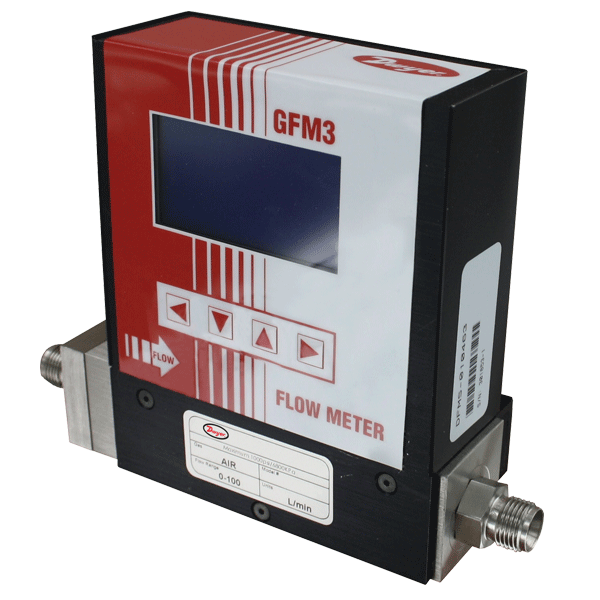

Series GFM3 Gas Mass Flow Meter

Taxes included. Shipping calculated at checkout.

SKU :

SeriesGFM3

Calibration needed?

Gas Mass Flow Meter
Flow Monitoring, Push-Button Configuration

View full details
  • Description
  • Features
  • Download Brochures

Flow Monitoring, Push-Button Configuration

The Series GFM3 Gas Mass Flow Meter is an ideal choice for the measurement of flow rates of a wide variety of gases. This digital flow meter features a 12-digit totalizer for total gas volume indication, and is available in the choice of 0 to 5 VDC, 0 to 10 VDC, or 4 to 20 mA output signals. Standard LCD and four button keypad allows easy access to the many features of the GFM3. Digital interface operates through available RS-485 or RS-232, providing access to internal data parameters and multi-drop capability of up to 255 units (RS-485 only). Set alarms remotely via digital interface for flow to alert user of high or low thresholds being exceeded. With a high ±1% FS accuracy and ±0.25% FS repeatability, the GFM3 is the optimal choice in gas flow metering and monitoring. The GFM3 comes with a NIST traceable certificate.

Product Applications

  • Gas Monitoring
  • Operating Pumps and Valves
  • Process Equipment
  • Vacuum Processes
  • Glass and Metal Coating
  • Film Deposition
  • Multi-drop capability of up to 256 units (for RS-485 option).

    • Programmable 12 digit totalizer indicates total gas volume.

    • Four button keypad and large 128x64 graphical LCD with backlight.

    • Internal conversion factors for up to 32 gases.

    • Automatic zero adjustment.

    • Self diagnostic tests.

    • Free communication software available for download at www.dwyer-inst.com.

    • Set alarms remotely via digital interface for flow to alert user of high or low thresholds being exceeded.

    • NIST traceable certificate included.
