Series AT2605 ATEX Approved 605 Differential Pressure

Taxes included. Shipping calculated at checkout.

SKU :

SeriesAT2605

Calibration needed?

ATEX Approved 605 Differential Pressure Indicating Transmitter
Series 605 in Flame-Proof ATEX Enclosure

View full details
  • Description
  • Features
  • Download Brochures

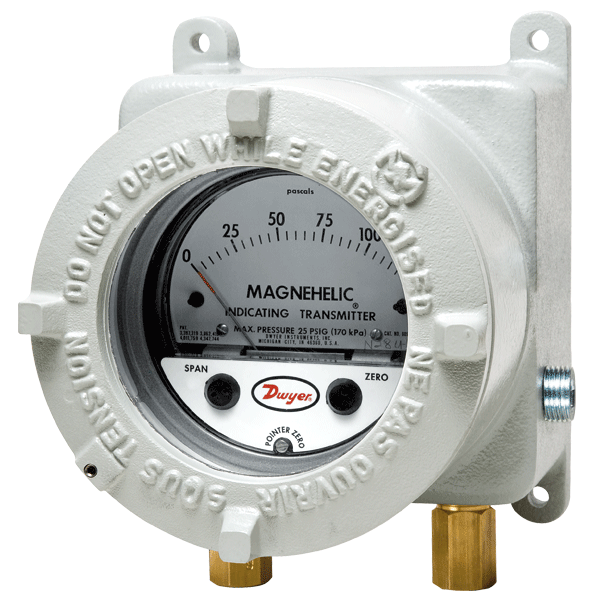

Series 605 in Flame-Proof ATEX Enclosure

The ATEX approved SERIES AT2605 Indicating Transmitter provides for both visual monitoring and electronic control of very low differential pressure in hazardous locations. The easily read dial gage is complimented by the two-wire, 4 to 20 mA control signal utilizing the time-proven Dwyer® Magnehelic® gage mechanical design and Series 600 transmitter technology. The two-wire design simplifies any 4 to 20 mA control loop powered by a 10 to 35 VDC supply. Flame-proof ATEX enclosures are available in aluminum and can include a glass window for viewing process pressure on gage face.

Important notes for installation:
• Cables must be fitted through 1/2" NPT cable gland or ATEX conduit (not supplied with instrument).
• Make sure after cabling to close tight cover and cable gland, in order to keep IP66 rating (IP65 with option OPV, overpressure relief valve).
• Open cover only after de-energizing instrument.
• Attention: Check local safety rules and warnings on unit and manual for a correct use of the instrument in hazardous area.

Please see SERIES 605 for non-ATEX approved.

Product Applications

  • Monitor pressures in ducts, rooms, or total building pressures
  • Filter monitoring
  • Local indication of clean room pressures with process signal sent to control room
  • Hazardous area pressure measurement and transmitter
  • ATEX housing provides all the capabilities and value of the Magnehelic® 605 in a flame & explosion-proof enclosure
  • Quick response to pressure changes means no delay in assessing critical situations
  • Durable and rugged housing and high-quality components combined provides longservice life and minimized down-time
  • High impact strength and high temperature rated for applications where hazardous environments exist
