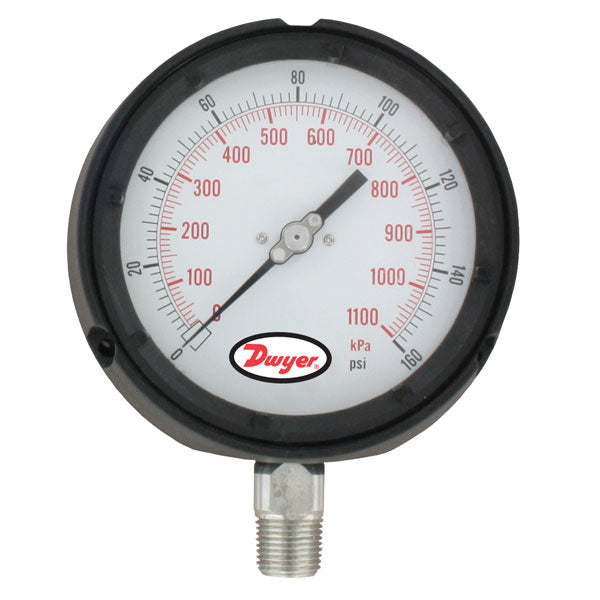

Series 765 Process Gage with Dampened Movement

Taxes included. Shipping calculated at checkout.

SKU :

Series765

Calibration needed?
Process Gage with Dampened Movement ±0.5% Accuracy, Safety Blow-Out Back
View full details
  • Description
  • Features
  • Download Brochures

±0.5% Accuracy, Safety Blow-Out Back

The SERIES 765 Process Gage with Dampened Movement minimizes effects of vibration without liquid filling. With this dampened movement the 765 gages are ideal for use in any application where high pulsation or vibration exists. The 765 gages offer dual scale range (psi/kPA) with ±0.5% full-scale accuracy. They are designed with a Phenolic safety-case and have a solid front with a blow-out back. Excellent chemical compatibility is insured with the 316L SS socket and Bourdon tube. A wide offering of ranges are available from full vacuum to 20,000 psi. The 765 process gage comes standard with bottom 1/4" or 1/2" male NPT connections.

Product Applications

  • Process applications
  • Chemical
  • Refinery
  • Fertilizer
  • Petrochemical
  • Power
  • Pharmaceutical
  • Pulp and paper
  • Cement
  • Liquid-free dampened movement minimizes effect of vibration and cost to maintain
  • Stainless steel socket and Bourdon tube permit use in chemical applications
  • High accuracy gage for applications requiring more precise measurement
  • Models that support vacuum to high pressure ranges provide a selection to meet specific applications
  • Specified with high ambient and process temperature ratings mean more robust uses and longer service-life
