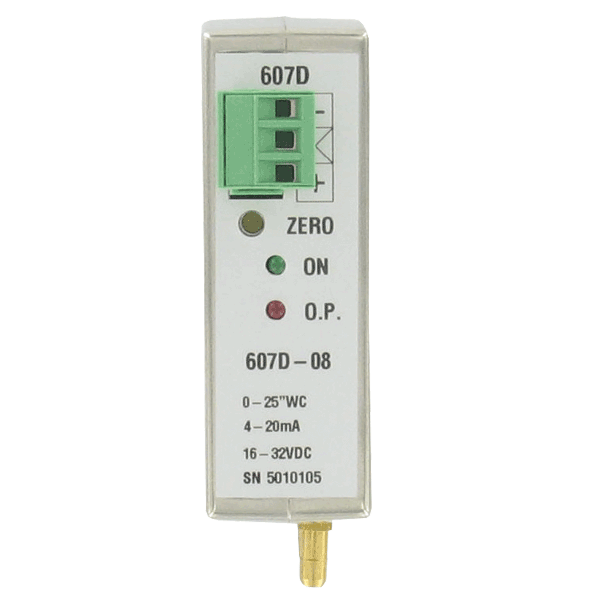

Series 607D DIN Rail Mount Differential Pressure Transmitter

Taxes included. Shipping calculated at checkout.

SKU :

Series607D

Calibration needed?

DIN Rail Mount Differential Pressure Transmitter
Mounts on 35 mm DIN Rail, LED Status Indication, ±0.25% Full Scale Accuracy

View full details
  • Description
  • Features
  • Download Brochures

Mounts on 35 mm DIN Rail, LED Status Indication, ±0.25% Full Scale Accuracy

SERIES 607D DIN Rail Mount Differential Pressure Transmitter senses the pressure of air and compatible gases and sends a standard 4 to 20 mA output signal. The 607D housing is specifically designed to mount on a 35 mm DIN rail in a panel. This mounting style allows for several units to be mounted closely together reducing required space. A wide range of models are available factory calibrated to 0.25% full scale accuracy in ranges from the very low 0.1 in w.c. to 25 in w.c. The span and zero controls are for field calibration. Units also include red/green LED status of proper transmitter operation. Versatile circuit design enables operation in 2-wire current loops.

Product Applications

  • HVAC
  • Clean room control
  • Filter status
  • High accuracy at low pressure ranges provides exceptional measurement for insuring tight-control and minimizing costly out of specification conditions
  • DIN mountable allows use in control panels for easy access to electrical supply reducing costly cabling
  • Visual LED indicators provides quick status on transmitter operation saving troubleshooting time
