Series 1900 Compact Low Differential Pressure Switches

Taxes included. Shipping calculated at checkout.

SKU :

Series1900

Calibration needed?

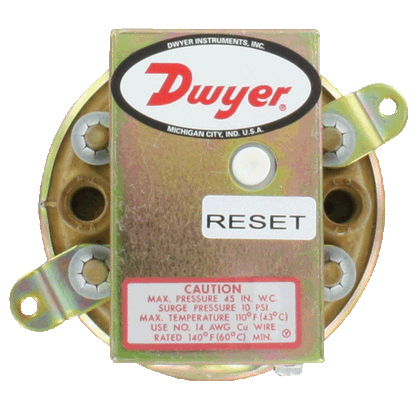

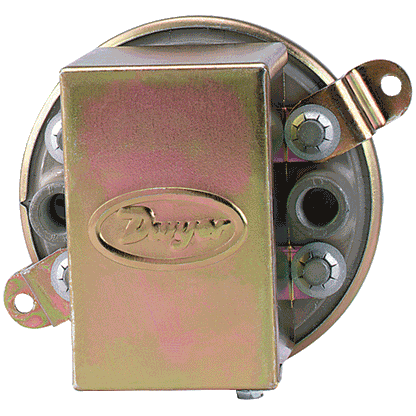

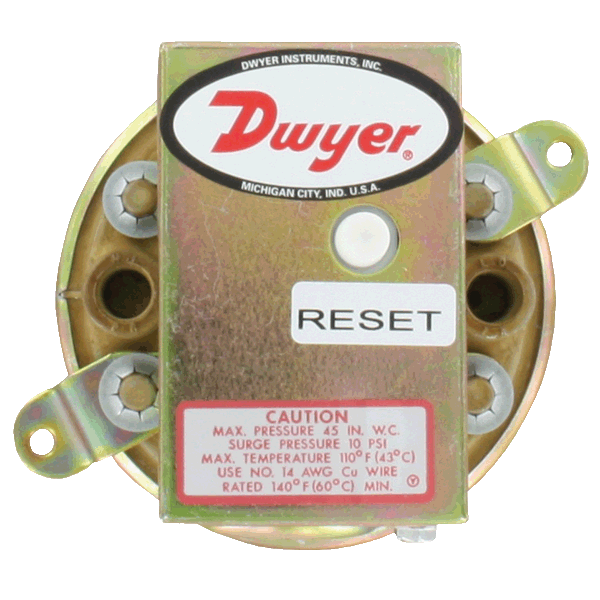

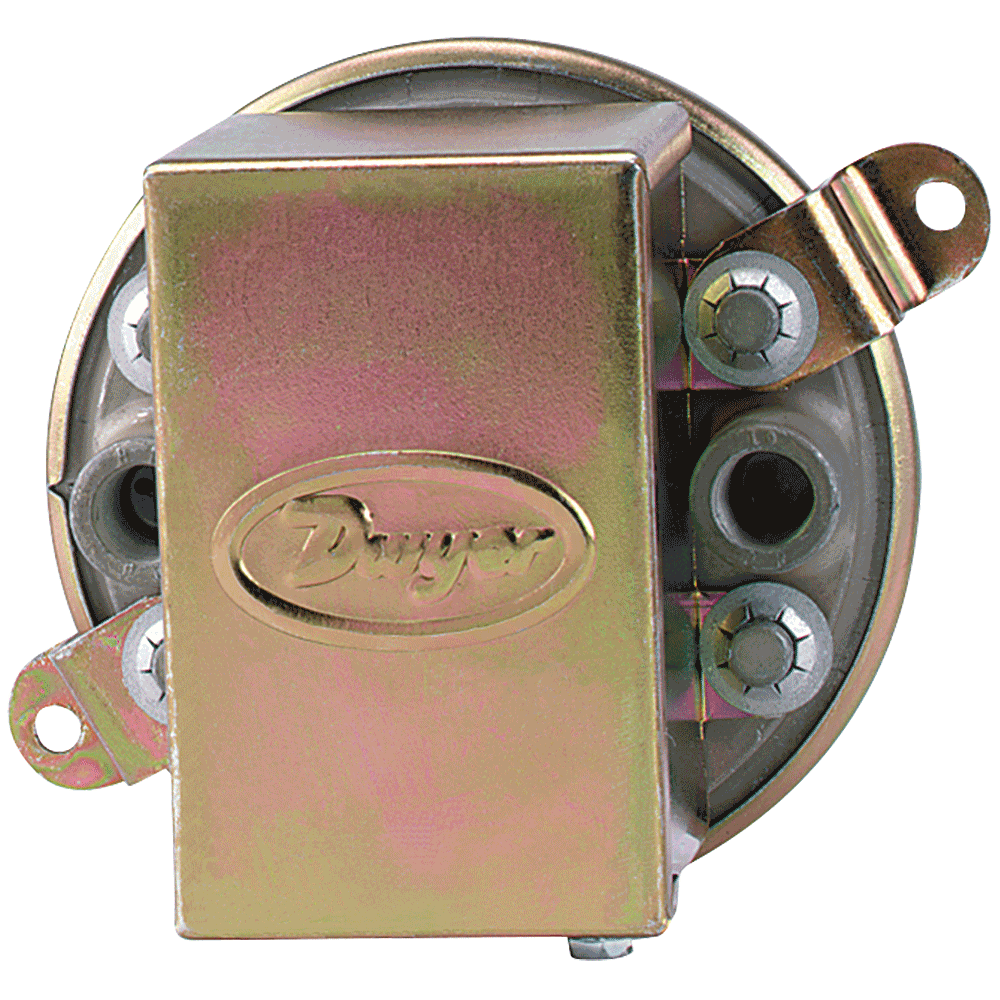

Compact Low Differential Pressure Switch
Set Points from 0.07" to 20" w.c., Repetitive Accuracy within 3%

View full details
  • Description
  • Features
  • Download Brochures

Set Points from 0.07" to 20" w.c., Repetitive Accuracy within 3%

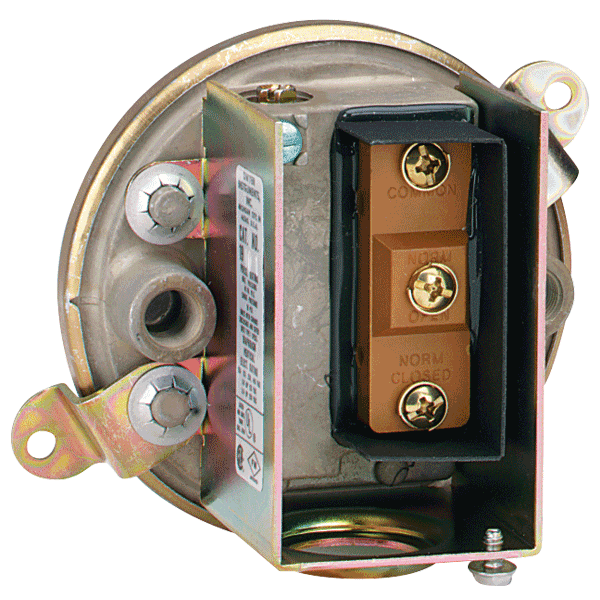

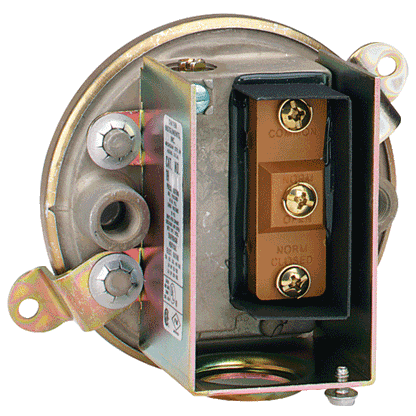

Our most popular SERIES 1900 combines advanced design and precision construction to make these switches able to perform many of the tasks of larger, costlier units. Designed for air conditioning service, they also serve many fluidics, refrigeration, oven and dryer applications. For air and non-combustible compatible gases, Series 1900 switches have set points from 0.07 to 20" w.c. (1.8 to 508 mm). Set point adjustment is easy with range screw located inside conduit enclosure. Internal location helps prevent tampering. UL, CE and CSA listed, and FM approved.

CAUTION: FOR USE ONLY WITH AIR OR COMPATIBLE GASES.

Please see SERIES AT11910 for ATEX approved.

Product Applications

  • Air conditioning refrigeration coil icing detection; defrost cycle intiation.
  • Clogged filter detection.
  • Variable air volume controller.
  • Compact size and repeatability, provides a high-value switch for many industrial and OEM applications
  • Wide range of models from 0.07 in w.c. to 20 in w.c. can meet exacting OEM specifications for a low pressure switch
  • Range screw protected inside enclosure provides simplifies making adjustments but prevents tampering
