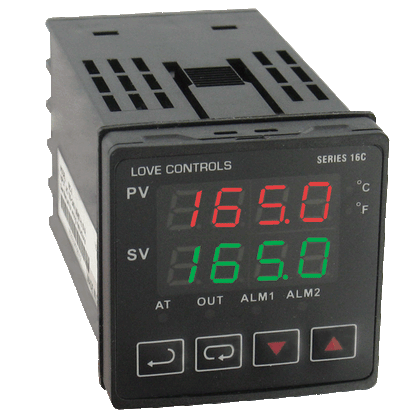

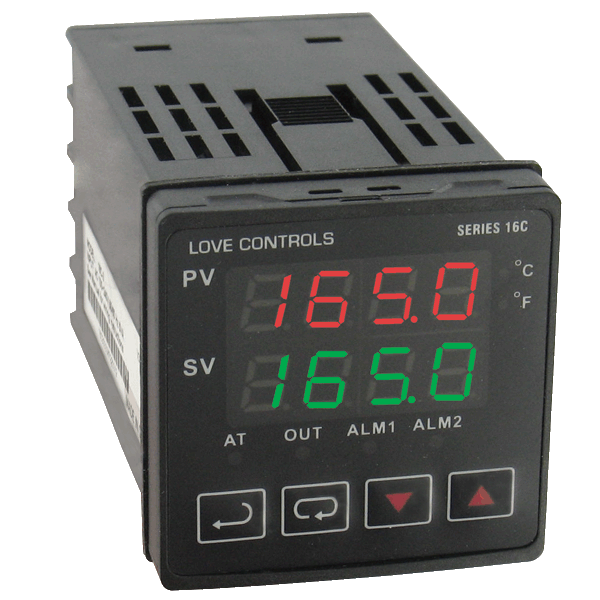

Series 16C 1/16 DIN Temperature Controller

Taxes included. Shipping calculated at checkout.

SKU :

Series16C

Calibration needed?

1/16 DIN Temperature Controller
PID Control, Auto-Tuning, Dual Display, RS-485 Communication

View full details
  • Description
  • Features
  • Download Brochures

PID Control, Auto-Tuning, Dual Display, RS-485 Communication

The compact Series 16C Temperature Controller offers accurate temperature measurement and control in a 1/16 DIN package. Designed for direct or reverse acting (cooling or heating) control, the Series 16C can be programmed for simple ON/OFF or more complex PID control functions. PID control is supported with manual or auto-tuning. Select relay, voltage or current output for control methods.

The Series 16C accepts a variety of thermocouple and RTD inputs. Process value and setpoint value are displayed simultaneously on the large dual LED. Auto-tuning, engineering units (°F or °C), and alarm status is also indicated on the faceplate. Two alarm outputs are included on the unit with 12 preprogrammed alarm functions.

Product Applications

  • Oven, boiler, or chiller control
  • Hot plates/melt pots
  • Food service equipment
  • Environmental chambers
  • Packaging equipment
  • Universal input accepts RTD or thermocouple sensors
  • On/Off, PID, or manual output control
  • RS-485 standard on all models
