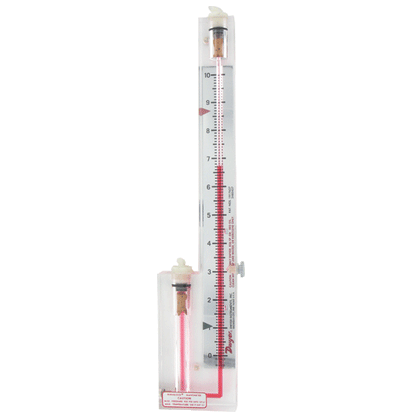

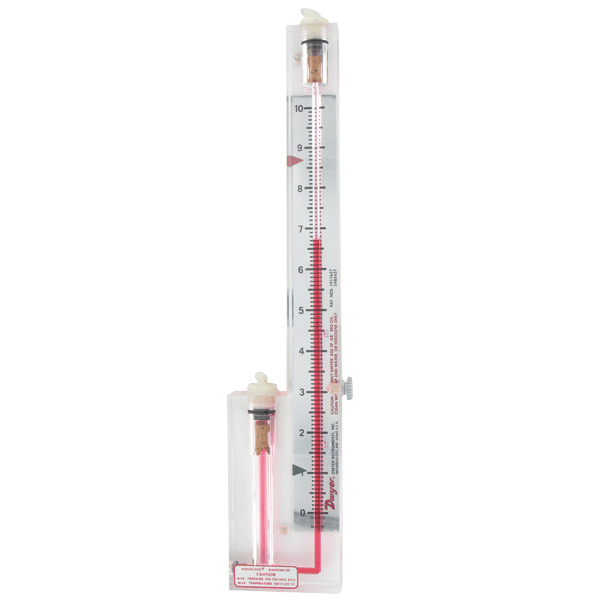

Series 100 Durablock® Solid Plastic Portable Gage

Taxes included. Shipping calculated at checkout.

SKU :

Series100

Calibration needed?
Durablock® Solid Plastic Portable Gage Suitable for Total Pressures Up to 100 psig, Temperatures Up to 150°F, Accuracy ±2% of Full Scale (1% on Model 115 Only)
View full details
  • Description
  • Features
  • Download Brochures

The Series 100 Durablock® Solid Plastic Portable Gage is a rugged and reliable instrument designed for accurate pressure measurement in the field. It is suitable for total pressures up to 100 psig and temperatures up to 150°F. The gage features an accuracy of ±2% of full scale, with the Model 115 offering an enhanced accuracy of ±1%. Its solid plastic construction ensures durability and resistance to harsh environmental conditions, making it ideal for portable applications.

Key Features:

Suitable for total pressures up to 100 psig and temperatures up to 150°F

Accuracy of ±2% of full scale; Model 115 offers ±1% accuracy

Solid plastic construction for durability and resistance to harsh conditions

Ideal for portable pressure measurement applications

Lightweight and easy to handle

  • 1" Thick Acrylic Plastic Body is a solid block, virtually unbreakable, stable and free of the danger of distortion.
  • Drilled bore Accurate to ±.0002" are permanently free of bends or crooks, will not require recalibration because of distortion.
  • Selected Gage Oil with high wetability characteristics forms a consistent, well shaped meniscus for easy readability.
  • Adjustable Reflective Chrome Finish Scales with thumbscrew locking for easy zeroing.
  • Parallax-Free Reading for maximum accuracy and consistency is achieved by simply aligning the meniscus with its image reflected in the polished aluminum scale.

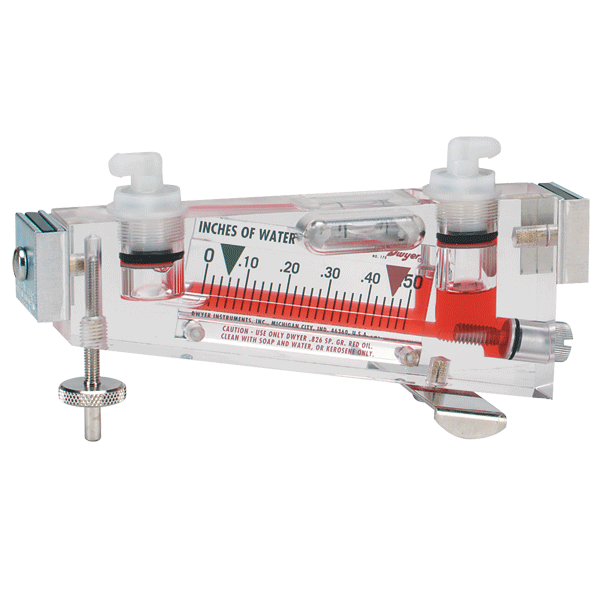

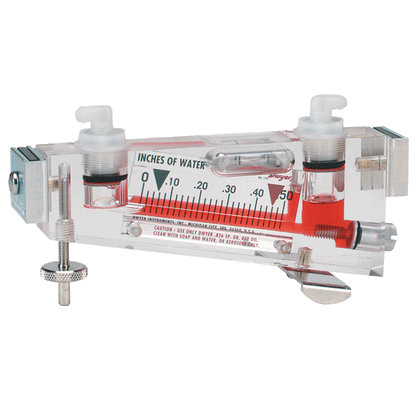

  • Screw Type Leveling Adjustment for inclined style gages provides rapid and accurate leveling with reference to integral sensitive ground glass bubble level.

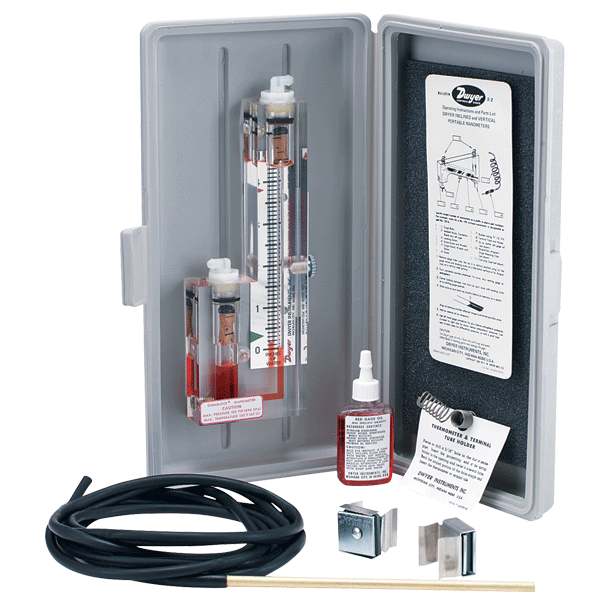

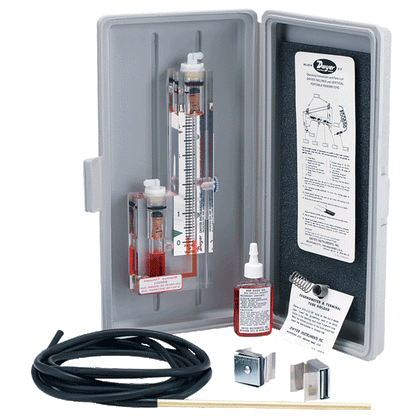

  • Furnished Complete with accessories and plastic carrying case.
