Self-Power Anlg. Pyrometer with PHEN Front for Temp. Measurement
Regular price
$3,292.80
Excl GST: $2,993.45
Excl GST: $2,993.45
Taxes included.
Shipping calculated at checkout.
SKU :
SKU:7000-READOUT
Anlg. Pyrometer OMEGA ® 7000 Series have thermocouple ranges calibrated for 10 ohm ext. res. & sup. with adjustable 10 ohm res. for use with thermocouples of lower resistance.
Couldn't load pickup availability
- Description
- Download Brochures

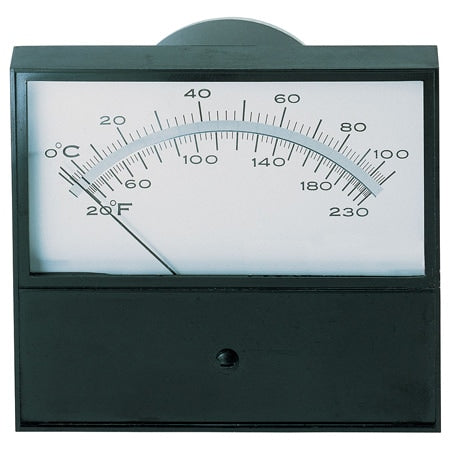

Analog Pyrometer OMEGA ® 7000 Series have thermocouple ranges calibrated for 10 ohms external resistance and are supplied with an adjustable 10 ohm resistor for use with thermocouples of lower resistance.
Thermocouple Specifications Thermistor type copper error compensation. Current sensitivity approximately 4 ohms per millivolt (250 microamperes). Automatic bimetal cold junction compensation for changes in ambient temperature. Mirrored scales with knife edge pointers are standard on all pyrometer models.
SPECIFICATIONS
Accuracy: ±2%
Tracking: None
Balance: ±1%
Repeatability (Taut Band Mechanism): <¼%
Thermocouple Specifications Thermistor type copper error compensation. Current sensitivity approximately 4 ohms per millivolt (250 microamperes). Automatic bimetal cold junction compensation for changes in ambient temperature. Mirrored scales with knife edge pointers are standard on all pyrometer models.
SPECIFICATIONS
Accuracy: ±2%
Tracking: None
Balance: ±1%
Repeatability (Taut Band Mechanism): <¼%
×
