Self-Adhesive Silicone Molded Surface Thermocouples
Regular price
$181.33
Excl GST: $164.85
Excl GST: $164.85
Taxes included.
Shipping calculated at checkout.
SKU :
SKU:SA2
General use thermocouples molded into silicone rubber with self-adhesive backing for easily measuring the temperatures of curved or flat surfaces up to 200°C.
Couldn't load pickup availability
- Description
- Download Brochures

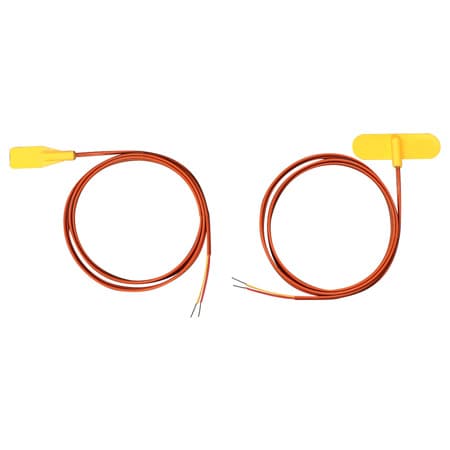

These sensors are available in 2 different mounting styles for flat or curved surfaces. The integral thermocouple sensor is bonded onto the inner surface of the self adhesive aluminum foil strip, which is provided for faster response times.
SPECIFICATIONS
Dimensions:
SA2C: 15 x 50 x 6.4 mm (0.59 x 1.97 x .25")
SA2F: 35 x 12 x 6.4 mm (1.38 x 0.47 x .25")
Wire: 24 AWG stranded thermocouple wire, 1 m (40") and 2 m (80") lengths; custom lengths available
View the Thermocouple Accuracy and Color Code charts
SPECIFICATIONS
Dimensions:
SA2C: 15 x 50 x 6.4 mm (0.59 x 1.97 x .25")
SA2F: 35 x 12 x 6.4 mm (1.38 x 0.47 x .25")
Wire: 24 AWG stranded thermocouple wire, 1 m (40") and 2 m (80") lengths; custom lengths available
View the Thermocouple Accuracy and Color Code charts
×
