- Description

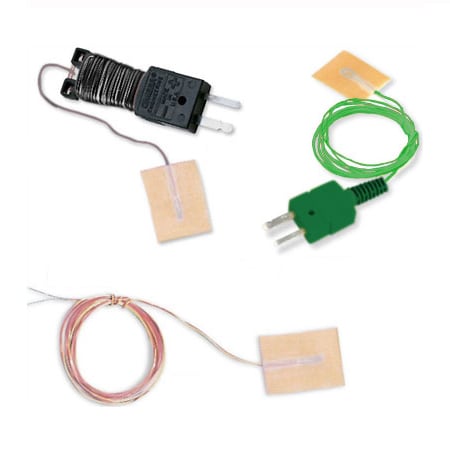

OMEGA's self-adhesive thermocouples have now been expanded to include the popular miniature connector with our patented wire caddy. The wire caddy provides a convenient way to store the thermocouple wire that is not needed for the application.
Specifications
Thermocouple Calibrations: J (Iron-Constantan), K (CHROMEGA™-ALOMEGA™), T (Copper Constantan), E (CHROMEGA™-Constantan)
Adhesive: Silicon based cement
Maximum Temperature: 175°C continuous
Minimum Temperature: -60°C continuous
Pad Dimensions: 25 L x 19 W x 0.3 mm
Laminates: High temperature polymer, and fibreglass reinforced polymer layers
Wire: 0.25mm diameter conductors with PFA insulation
Note: 2 meters is the longest length available with wire caddy.
Specifications
Thermocouple Calibrations: J (Iron-Constantan), K (CHROMEGA™-ALOMEGA™), T (Copper Constantan), E (CHROMEGA™-Constantan)
Adhesive: Silicon based cement
Maximum Temperature: 175°C continuous
Minimum Temperature: -60°C continuous
Pad Dimensions: 25 L x 19 W x 0.3 mm
Laminates: High temperature polymer, and fibreglass reinforced polymer layers
Wire: 0.25mm diameter conductors with PFA insulation
| Model No.- IEC Color Code | Length
metres | Insulation
| |||
| T/C Type
| Thermocouple with Stripped Leads
| Thermocouple with mini plug and wire caddy
| Thermocouple with mini plug and Strain Relief
| ||
| J
| SA1-JI-1M
| SA1-JI-1M-SC
| SA1-JI-1M-SRTC
| 1
| PFA
|
| K
| SA1-KI-1M
| SA1-KI-1M-SC
| SA1-KI-1M-SRTC
| 1
| PFA
|
| T
| SA1-TI-1M
| SA1-TI-1M-SC
| SA1-TI-1M-SRTC
| 1
| PFA
|
| J
| SA1-JI-2M
| SA1-JI-2M-SC
| SA1-JI-2M-SRTC
| 2
| PFA
|
| K
| SA1-KI-2M
| SA1-KI-2M-SC
| SA1-KI-2M-SRTC
| 2
| PFA
|
| T
| SA1-TI-2M
| SA1-TI-2M-SC
| SA1-TI-2M-SRTC
| 2
| PFA
|
| J
| SA1-JI-3M
| n/a
| SA1-JI-3M-SRTC
| 3
| PFA
|
| K
| SA1-KI-3M
| n/a
| SA1-KI-3M-SRTC
| 3
| PFA
|
| T
| SA1-TI-3M
| n/a
| SA1-TI-3M-SRTC
| 3
| PFA
|
