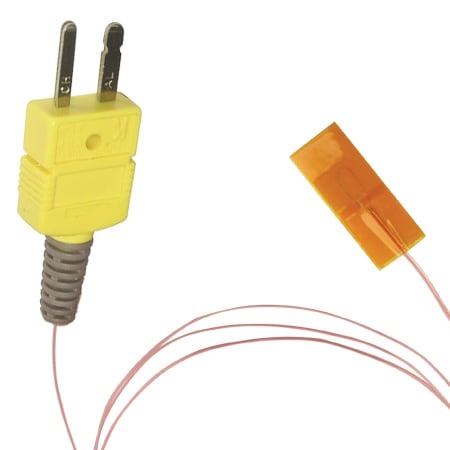

Self-Adhesive Polyimide Fast Response Surface Thermocouples - High Temp

$85.77
Excl GST: $77.97
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

SA3

Calibration needed?
Fast response thermocouples mounted in a polyimide carrier with a self-adhesive backing for easily measuring surface temperatures up to 260°C. Resistant to oil and chemicals.
View full details
  • Description
  • Download Brochures
These thermocouples can be used in outdoor and wet environments, including bright sunlight, with little to no effect on performance or accuracy. Our unique construction techniques provides a fast responding thermocouple junction in a thin and flexible mounting pad. These SA3 thermocouples are available in 2 styles, stripped #30AWG solid leads, or with a miniature color coded connector.

Specifications
Thermocouple: ANSI color code J/K/T/E or IEC color code JI/KI/TI/EI
Accuracy: Special limits of error
Junction Type: Ungrounded sensor construction
    • Polyimide tape base with silicone adhesive and paper peel sheet
    • Polyimide tape cover
    • PFA insulated and jacketed 30 AWG cable
    • Glass filled nylon connector when specified
Temperature Range:
    Sensor: -17 to 260°C (0 to 500°F)
    Connector: -29 to 180°C (-20 to 356°F)
Insulation Resistance: 100 M? minimum at 100 Vdc at room temperature and sensor mounted to surface
