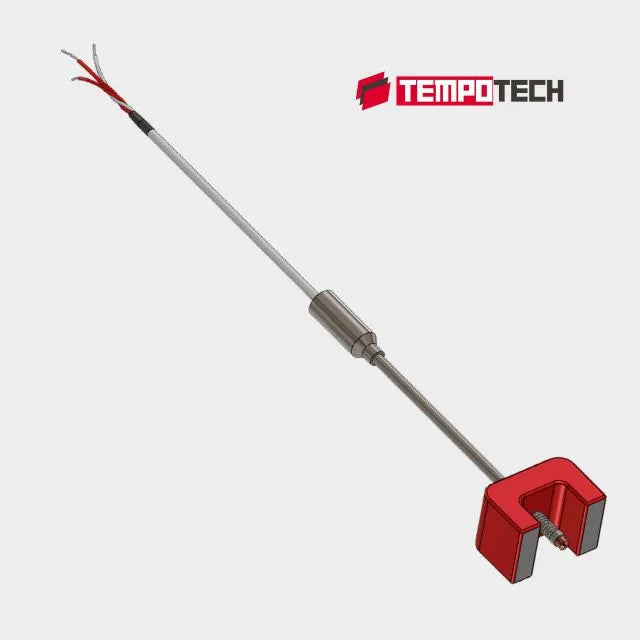

RTD31 Surface Mount Magnet RTD

Taxes included. Shipping calculated at checkout.

View full details
  • Description

The RTD31 Magnet RTD is a specialized type of RTD sensor designed to measure surface temperatures by attaching magnetically to ferromagnetic materials. It combines the functionality of a standard RTD with the convenience of a magnetic mount, making it ideal for applications where non-invasive, temporary temperature monitoring.

Key features

  • Available in type Pt100,Pt100(0.00392),Pt200,Ni20 ohm .
  • Available in Class B, Class A, Class AA, 1/10 DIN B(IEC 60751& ASTM E1137)
  • Single and Duplex Sensor elements.
  • Range -50°C to 510°C ( -58°F to 950°F)
  • Magnet Pull Strength 2.5,30 & 50 Pound, Custom option available
  • Spring loaded Tip, Copper Tip Option available for Fast Response
  • Bare ends and Connector option avaible
  • TEFLON (200°C and fiberglass wire 480°C with SS braiding and Armours available
  • Insulation Resistance : 100 MG Ohms @ 250 vdc
  • Response Time : <5 Sec in circulating water @ 1ft/sec
  • Accuracy : As per IEC60751 (See tolerance chart)
  • Self Heating Error: < 0.30°F (0.17°C)
  • Time Constanat : < 5 sec

Application Note

The RTD31 series from Tempotech Controls is Magnetic Mount RTDs are designed to use in surface measurement applications on ferrous metals.  Magnet at the hot side gives strong contact to the RTD tip with hot surface. It can be used to measure temperature continuously or intermittently.ideal for applications like temperature mapping and short-term positioning. With its reliable and accurate readings, the RTD31 ensures consistent monitoring and temperature control, enhancing efficiency in industrial processes.
