Precision Thermistor Sensors & Probes

Precision Thermistor Sensors & Probes

$288.24
Excl GST: $262.04
Sale Sold out
Shipping calculated at checkout.

SKU :

ON-400-PROBES

Calibration needed?
Family of thermistor sensors including wire, immersion probe, air and surface sensing styles. Five resistances and two accuracies available.
View full details
  • Description
  • Download Brochures

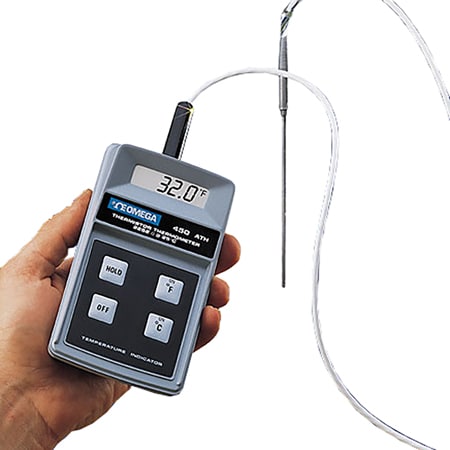

OMEGA ENGINEERING Series "400" probes are for use in laboratory and R&D applications and have
interchangeable sensor accuracy of ±0.1°C. Each sensor is supplied with a 10-foot vinyl cable and
phone-plug connector. The Series "400" probes are 2252 Ohm @ 25°C.

Configuration
Dimensions in mm (")		 Model
Number		 Description Temp.
Rating		 Application
Thermistor ON-401-PP General Purpose. Used for short-term water and sub-soil readings. Most rugged, waterproof construction. 100°C
(212°F)		 Buried
Thermistor ON-401-PP-V Water resistant, soft, flexible, vinyl tipped version of above model.
Thermistor ON-402-PP Small Flexible. Vinyl sheath and tip. Cuvette temperatures. General purpose measurement. Continuous length. 100°C
(212°F)		 General Purpose
Thermistor ON-403-PP Tubular. Stainless steel probe for rugged duty. Often used for liquid immersion. Probe is immersible only to cap. 100°C
(212°F)		 Liquid
Thermistor ON-404-PP Tubular-Glass. Chemically inert for liquid immersion use. Thermometric titration. Freezing point determination. Pyrex, 127 mm (5") long. 100°C
(212°F)		 Liquid
Thermistor ON-405-PP Air Temperature. Stainless steel probe suitable for test rooms, incubators, remote air readings, monitoring of gas streams, etc. 100°C
(212°F)		 Gas
ON-406-PP Same as ON-405-PP but with economical plastic housing.
Thermistor ON-408-PP "Banjo" Surface Temperature. Skin, oral, axillary, water bath, air, surfaces temperatures. Stainless steel. 100°C
(212°F)		 Surface
Thermistor ON-409-PP Attachable Surface Temperature. Stainless steel cup, epoxy-backed. Easy to tape on flat surfaces. Good for heat loss or compression efficiency study of piping. 100°C
(212°F)		 Surface
Thermistor ON-410-PP Tubular With Fitting. Rugged, stainless steel probe with pipe fitting.Suitable for taking readings in pipes or inside closed vessels. 100°C
(212°F)		 Gas, Liquid
