- Description

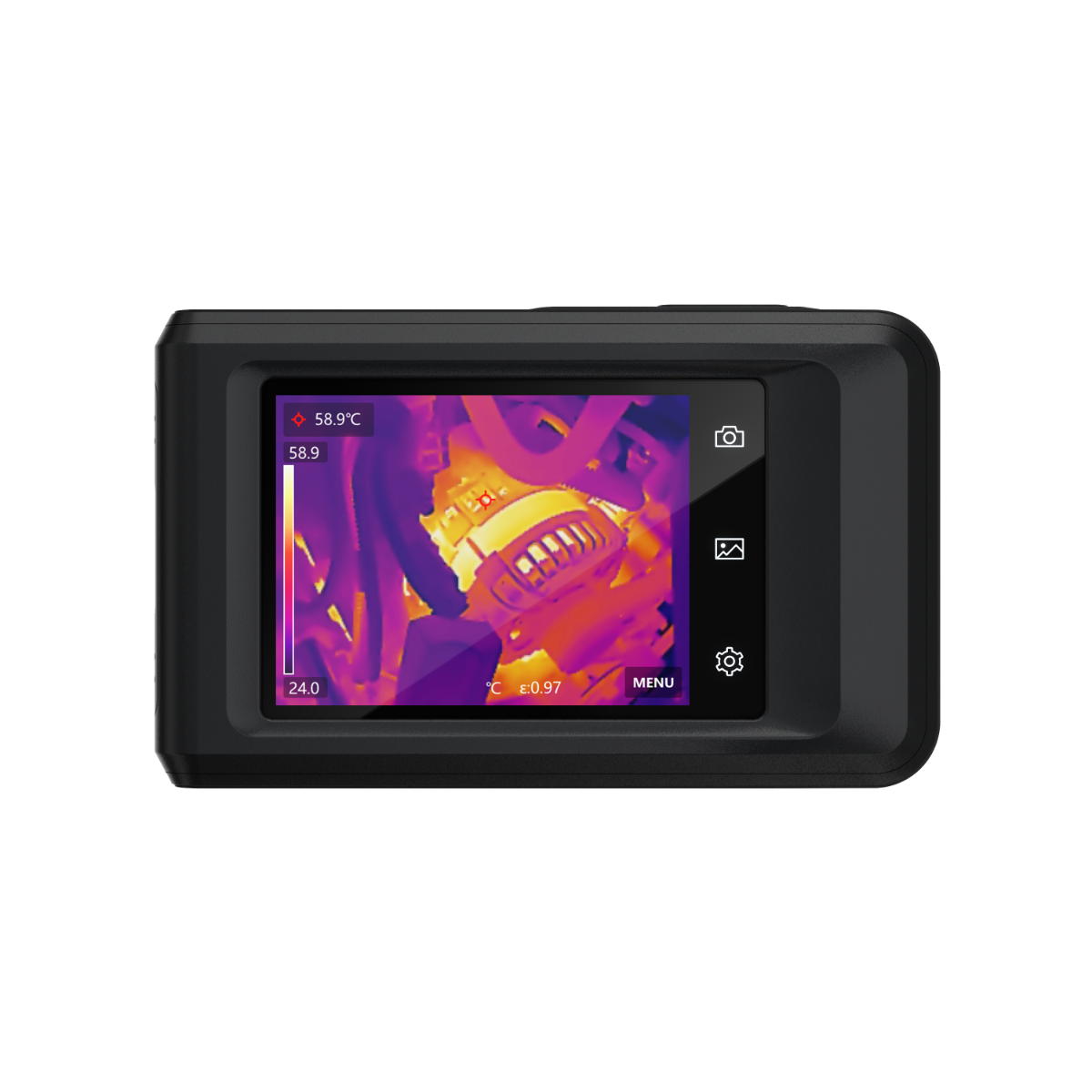

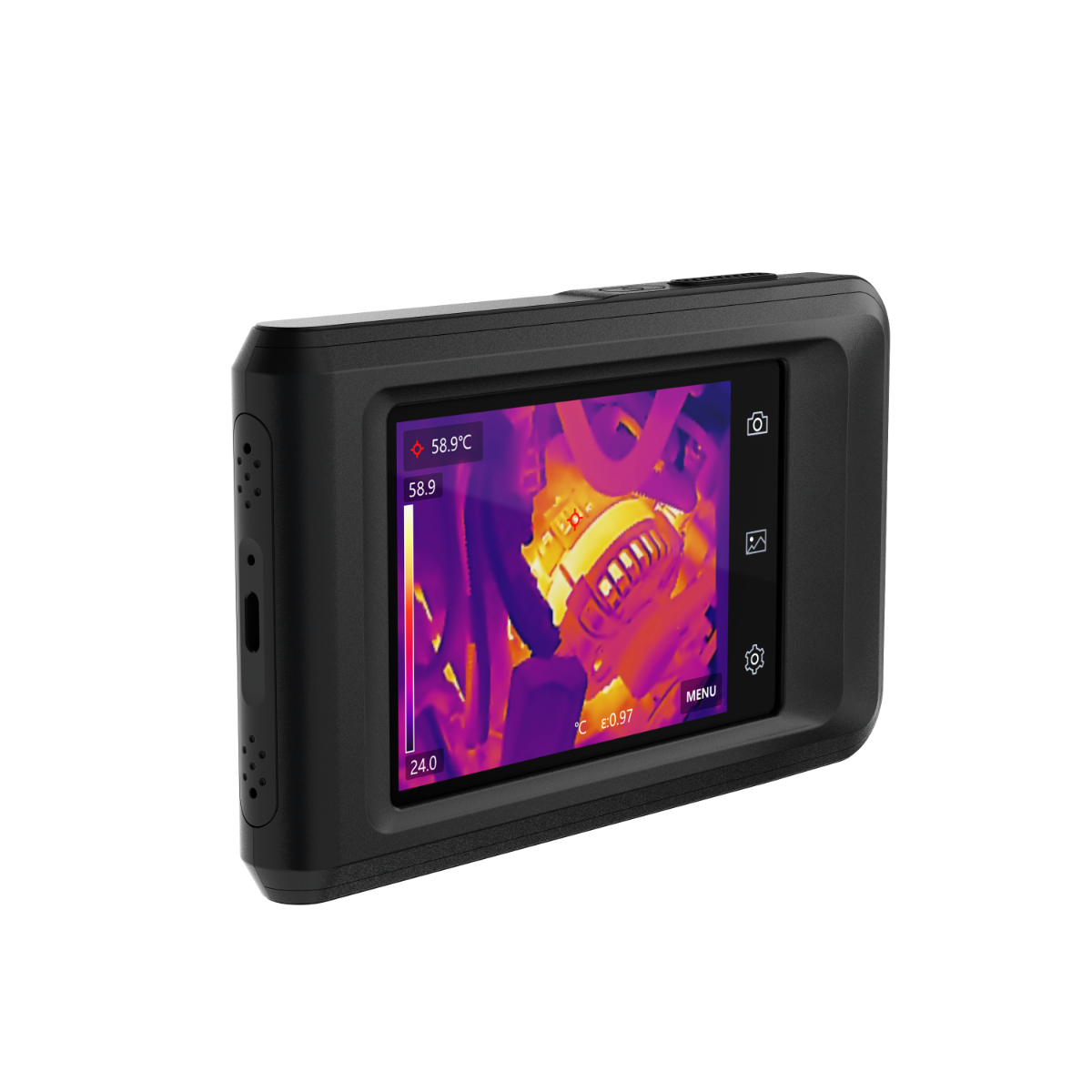

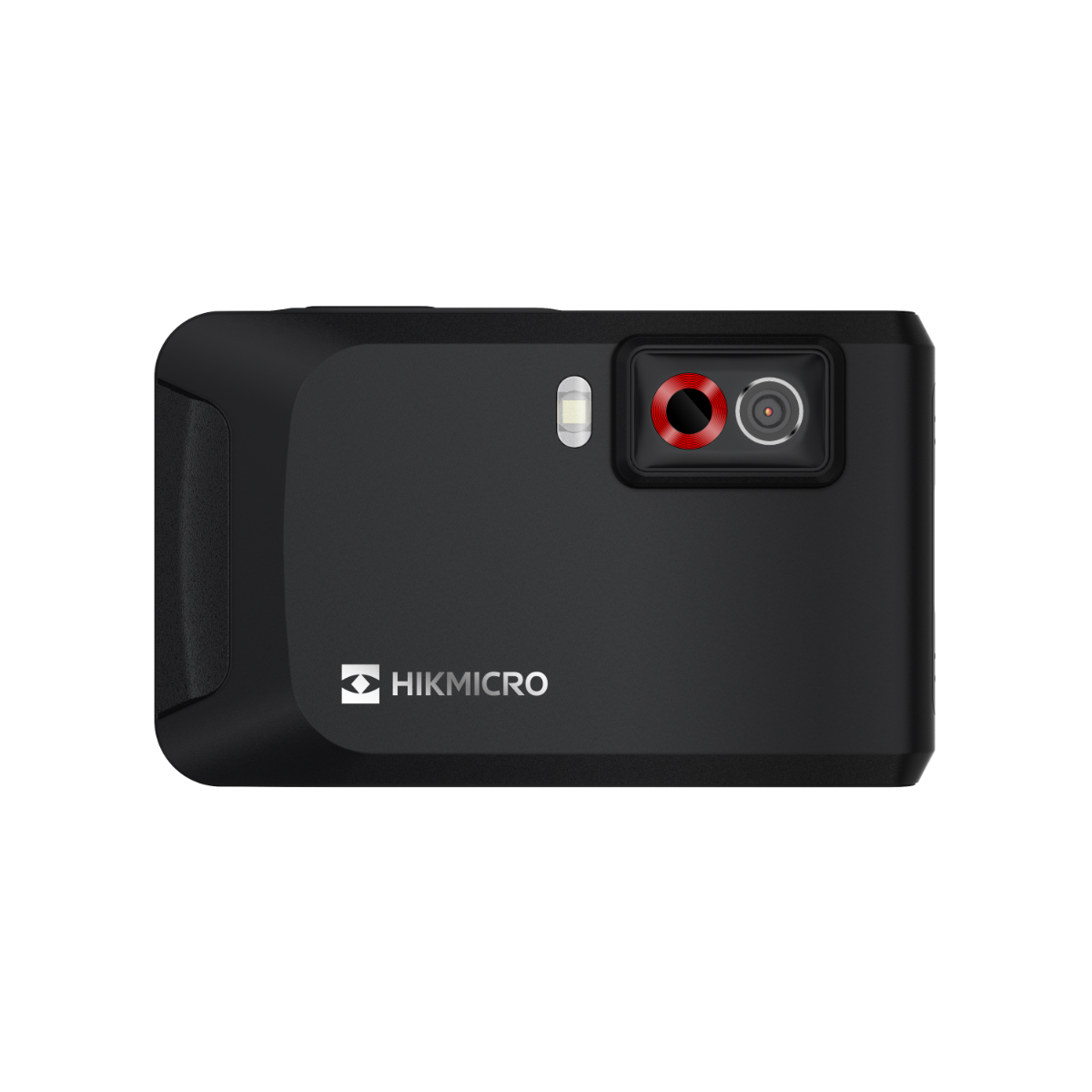

Poket 1
IR Resolution: 192 x 144 (27, 648 pixels)
NETD: < 0.04°C (40 mK) at 25°C (77°F) Ambient Temperature, F#=1.0
FOV (Field of View): 37.5 °H × 28 °V
Display: 640 × 480 Resolution, 3.5’’ LCD Touch Screen
Object Temperature Range: -20 °C to 400 °C ( -4 °F to 752 °F )
Max (±2°C/3.6°F, ±2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
Wi-Fi: 802.11 b/g/n (2.4 GHz, 5 GHz)
Visible Image Resolution: Configurable: 2 MP, 5 MP, 8 MP
Focus: Fixed
IFOV (Spatial Resolution): 3.43 mrad
Image Frequency: 25 Hz
Image Modes: Thermal/Optical/Fusion/PIP
Protection Level: IP54
Drop Test Height: 2 m (6.56 ft)
Poket 2
IR Resolution: 256 x 192 (49, 152 pixels)
NETD: < 0.04°C (40 mK) at 25°C (77°F) Ambient Temperature, F#=1.0
FOV (Field of View): 50° H × 37.2° V
Display: 640 × 480 Resolution, 3.5’’ LCD Touch Screen
Object Temperature Range: -20 °C to 400 °C ( -4 °F to 752 °F )
Max (±2°C/3.6°F, ±2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
Wi-Fi: 802.11 b/g/n (2.4 GHz, 5 GHz)
Visible Image Resolution: Configurable: 2 MP, 5 MP, 8 MP
Focus: Fixed
IFOV (Spatial Resolution): 3.43 mrad
Image Frequency: 25 Hz
Image Modes: Thermal/Optical/Fusion/PIP
Protection Level: IP54
Drop Test Height: 2 m (6.56 ft)
