Pipe Plug Thermistor Probes with NPT Fitting and Lead Wire
Pipe Plug Thermistor Probes with NPT Fitting and Lead Wire
Regular price
$278.54
Excl GST: $253.22
Excl GST: $253.22
Shipping calculated at checkout.
SKU :
SKU:TH-44000-NPT

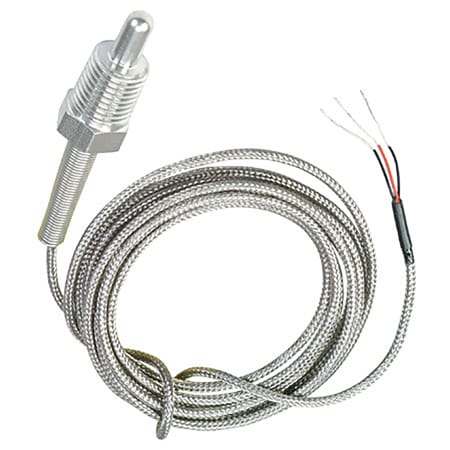

Thermistor sensors great for installing into pipes or limited space applications. 1/8" or 1/4" NPT mounting threads available with 72" of Stainless Steel overbraid cable.
Couldn't load pickup availability
- Description
- Download Brochures
These sensors are designed to be conveniently mounted directly into ports with 1/8NPT or 1/4NPT threads. The housings are machined from 300 Series Stainless Steel, contain a stainless steel strain relief spring, and stainless steel braided cables for use in rugged applications.
Sensor Specifications:
Maximum Temperature: 150°C or 75°C Depending on Accuracy Housing: ¼ or 1⁄8 NPT with 6mm Diameter Tip Cable: 2 meters of 2 Conductor, #26AWG Stranded, PFA Insulated and Jacketed, SST Braided Cable Sensor Output: 2252Ω Standard, 3kΩ, 5kΩ, 10kΩ and 30kΩ Optional Resistances Also Available Accuracy: ±0.2°C Standard, ±0.1°C Available
Note: The TH-44004-1/4NPT-80 model sensor replaces the original TH-44004-NPT-80 , the "1/4" before the NPT designation insures that you will get the correct mounting thread for your application.
Sensor Specifications:
Note: The TH-44004-1/4NPT-80 model sensor replaces the original TH-44004-NPT-80 , the "1/4" before the NPT designation insures that you will get the correct mounting thread for your application.
×
