PFA-TEFLON-Insulated RTD wire non shielded (-200° C to + 260°C)

Taxes included. Shipping calculated at checkout.

View full details
  • Description

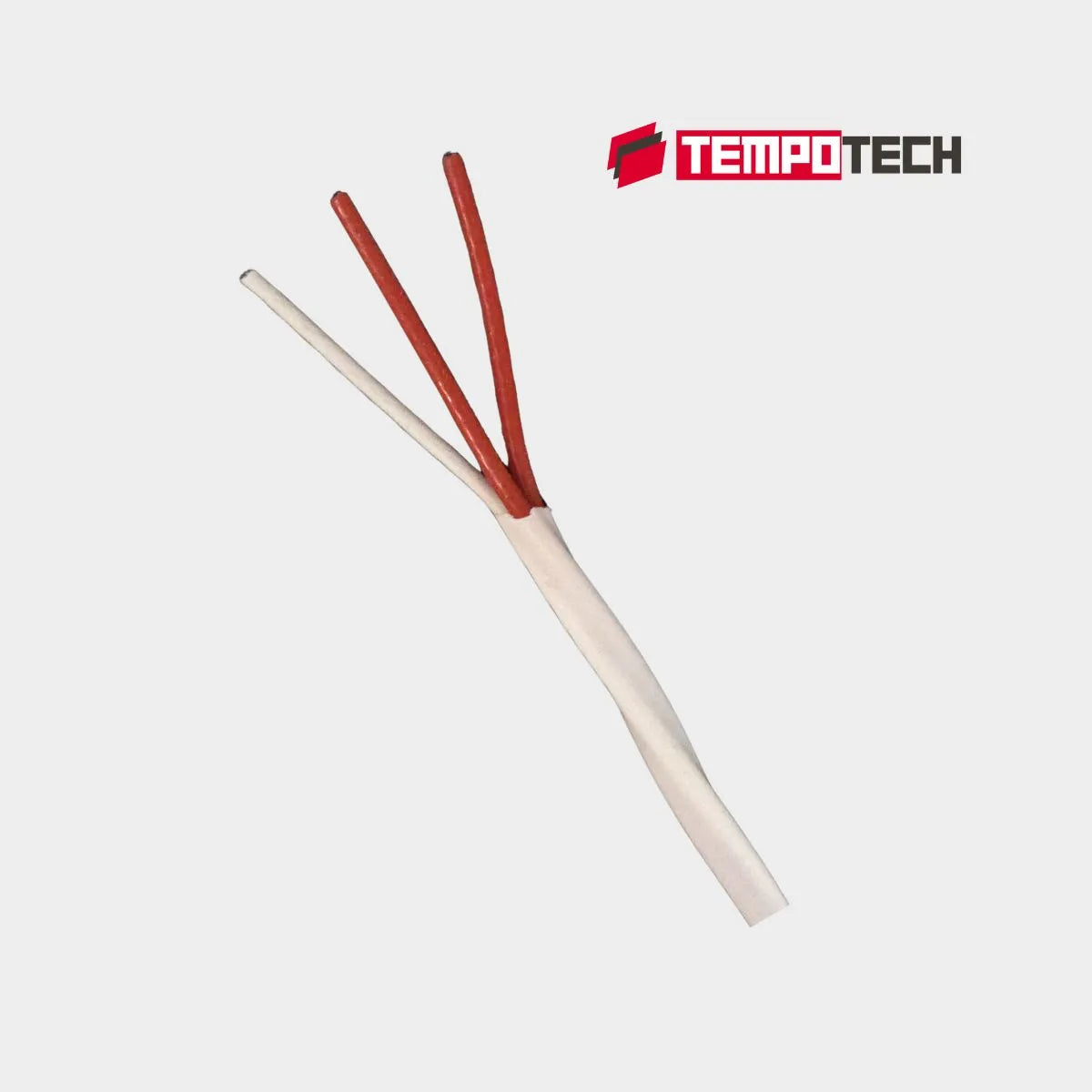

PFA: Color-coded PFA Teflon® is extruded over each single conductor. The single insulated conductors are twisted and insulated with an extruded white jacket of PFA Teflon®

Key Features

  • Rated for continuous use at 500° F (260º C).
  • Rate for Intermittent use at 500° F (260º C).
  • Available in nickel plated, Silver plated and Tin plated conductors.
  • Operating Temperature –328° F (-200º C )to 400° F (205º C).
  • Available in Type 3 , 4 and 6 Conductors
  • Singles: FEP Teflon®‡ 8 mil nominal
  • Jacket: FEP Teflon®‡ 10 mil nominal

Comparison to Other Constructions

Abrasion Resistance – Fair
Chemical Resistance – Good
Moisture Resistance – Good



Application Note

RTD cables transmit or extend the signal produced by Resistance Temperature Detectors (RTDs) and are commonly constructed with copper-stranded wire coated with materials like nickel, silver, or tin to reduce added resistance in the temperature measurement signal and endure various environmental conditions.
