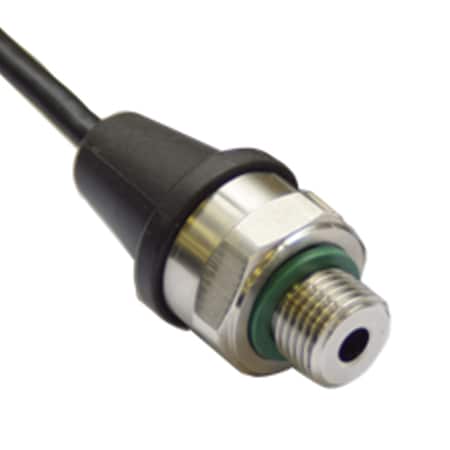

OEM Style, Compact Pressure Transducers with Cable | PX190

$349.42
Excl GST: $317.65
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

PX190

Calibration needed?
The PX190 series are compact, rugged, and cost effective with both current and voltage outputs to integrate with a variety of industrial and OEM applications.
View full details
  • Description

Omega's PX190 Rugged IP67 Compact Pressure Transmitter series is a terrific option for OEM or general purpose applications where an economical choice is needed. These transducers are designed for general industrial and commercial applications where good accuracy and reliability are also important. The PX190 series is constructed with a rugged, compact design that is under 2" - a great fit for small spaces. And with wetted parts made of 17-4PH stainless steel, this transducer has high strength, good corrosion resistance, and good mechanical properties that make it compatible with a wide variety of media. This transducer comes in both voltage and current output options and a variety of pressure ranges that cover gauge pressure from 0 to 700 psi.

Wiring Color Code

  PX191 PX192
Wire Color 3-wire 2-wire
Red +V +V
Green +OUT NULL
Black GND +OUT
