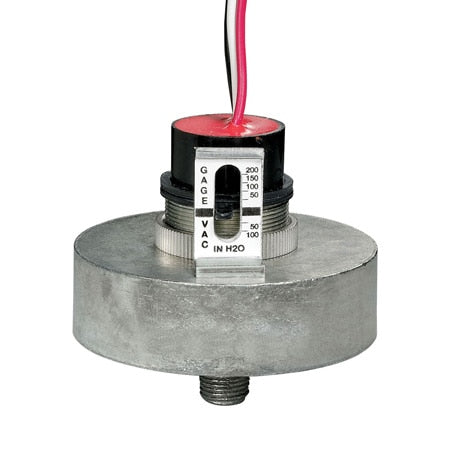

OEM Mechanical Pressure Switch for Low Pressure and Vacuum
Regular price
$425.48
Excl GST: $386.80
Excl GST: $386.80
Taxes included.
Shipping calculated at checkout.
SKU :
SKU:PSW-681-Series
The PSW-681 series are compact, economical SPST switches with a fixed deadband for extremely low pressure and vacuum ranges.
Couldn't load pickup availability
- Description
SPECIFICATIONS
Process Temp: -55 to 90°C (-67 to 194°F) A setpoint change of up to 2% of sensor capacity may be anticipated when switch is used either below -25°C (-13°F) or above 50°C (122°F)
Repeatability: ±0.8 inH2O
Cycling: Not to exceed 20 CPM
Warranty: 3 year/1 million cycles
Proof Pressure/Vacuum: ±553.6 inH2O (±20 psi)
Wetted Parts: Buna-N, 316 Stainless Steel, zinc alloy with chromate finish, Loctite #271 sealing compound
Dimensions: 58.4 D x 57.2 mm H (2.3 D x 2.25' H)
Pressure Port: 1/8-27 NPT male
Electrical Connection: 300 mm (12') pigtail leads 20 AWG, polyvinyl insulated
Weight: 221 g (7.8 oz)
Process Temp: -55 to 90°C (-67 to 194°F) A setpoint change of up to 2% of sensor capacity may be anticipated when switch is used either below -25°C (-13°F) or above 50°C (122°F)
Repeatability: ±0.8 inH2O
Cycling: Not to exceed 20 CPM
Warranty: 3 year/1 million cycles
Proof Pressure/Vacuum: ±553.6 inH2O (±20 psi)
Wetted Parts: Buna-N, 316 Stainless Steel, zinc alloy with chromate finish, Loctite #271 sealing compound
Dimensions: 58.4 D x 57.2 mm H (2.3 D x 2.25' H)
Pressure Port: 1/8-27 NPT male
Electrical Connection: 300 mm (12') pigtail leads 20 AWG, polyvinyl insulated
Weight: 221 g (7.8 oz)
×
