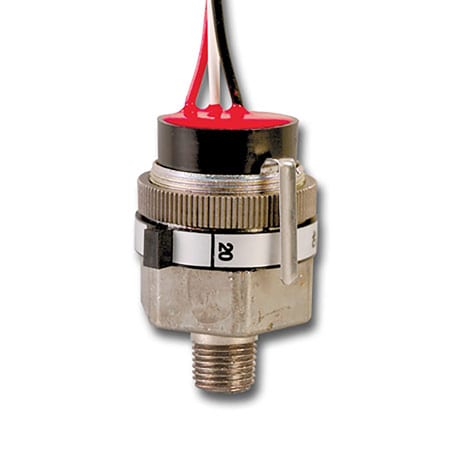

OEM Mechanical Pressure Switch for Indoor Applications
OEM Mechanical Pressure Switch for Indoor Applications
Regular price
$358.15
Excl GST: $325.59
Excl GST: $325.59
Taxes included.
Shipping calculated at checkout.
SKU :
SKU:PSW-621-Series
The PSW-621 series are economical, compact SPST switches with a fixed deadband and zinc alloy composition that makes these suitable for indoor industrial applications.
Couldn't load pickup availability
- Description
SPECIFICATIONS
Process Temp: -55 to 105°C (-65 to 221°F) 2% setpoint shift can occur below -23°C (-10°F) or above 52°C (125°F)
Repeatability: ± 2% of max system pressure
Cycling: Not to exceed 20 cycles/min
Warranty: 3 year/1 million cycles
Proof Pressure: 150% Max Pressure
Wetted Parts: 17-7 PH stainless steel, Loctite sealing compound #271, ZA8 alloy, chromate finish
Enclosure: Zinc alloy, chromate finish
Dimensions: 48 L x 28 mm Dia. (1.9 L x 1.1' Dia.)
Pressure Port: 1/8 -27 NPT Male
Electrical Connection: 300 mm (12') pigtail leads, 20 AWG, polyvinyl insulated
Wiring Code (pressure):
Black = Common
Red = N/C
White = N/O
Wiring Code (vacuum):
Black = Common
Red = N/O
White = N/C
Weight: 57 g (2 oz) (approx)
Process Temp: -55 to 105°C (-65 to 221°F) 2% setpoint shift can occur below -23°C (-10°F) or above 52°C (125°F)
Repeatability: ± 2% of max system pressure
Cycling: Not to exceed 20 cycles/min
Warranty: 3 year/1 million cycles
Proof Pressure: 150% Max Pressure
Wetted Parts: 17-7 PH stainless steel, Loctite sealing compound #271, ZA8 alloy, chromate finish
Enclosure: Zinc alloy, chromate finish
Dimensions: 48 L x 28 mm Dia. (1.9 L x 1.1' Dia.)
Pressure Port: 1/8 -27 NPT Male
Electrical Connection: 300 mm (12') pigtail leads, 20 AWG, polyvinyl insulated
Wiring Code (pressure):
Black = Common
Red = N/C
White = N/O
Wiring Code (vacuum):
Black = Common
Red = N/O
White = N/C
Weight: 57 g (2 oz) (approx)
×
